Sailrite Craftool Pro Stitch Master - Page 43

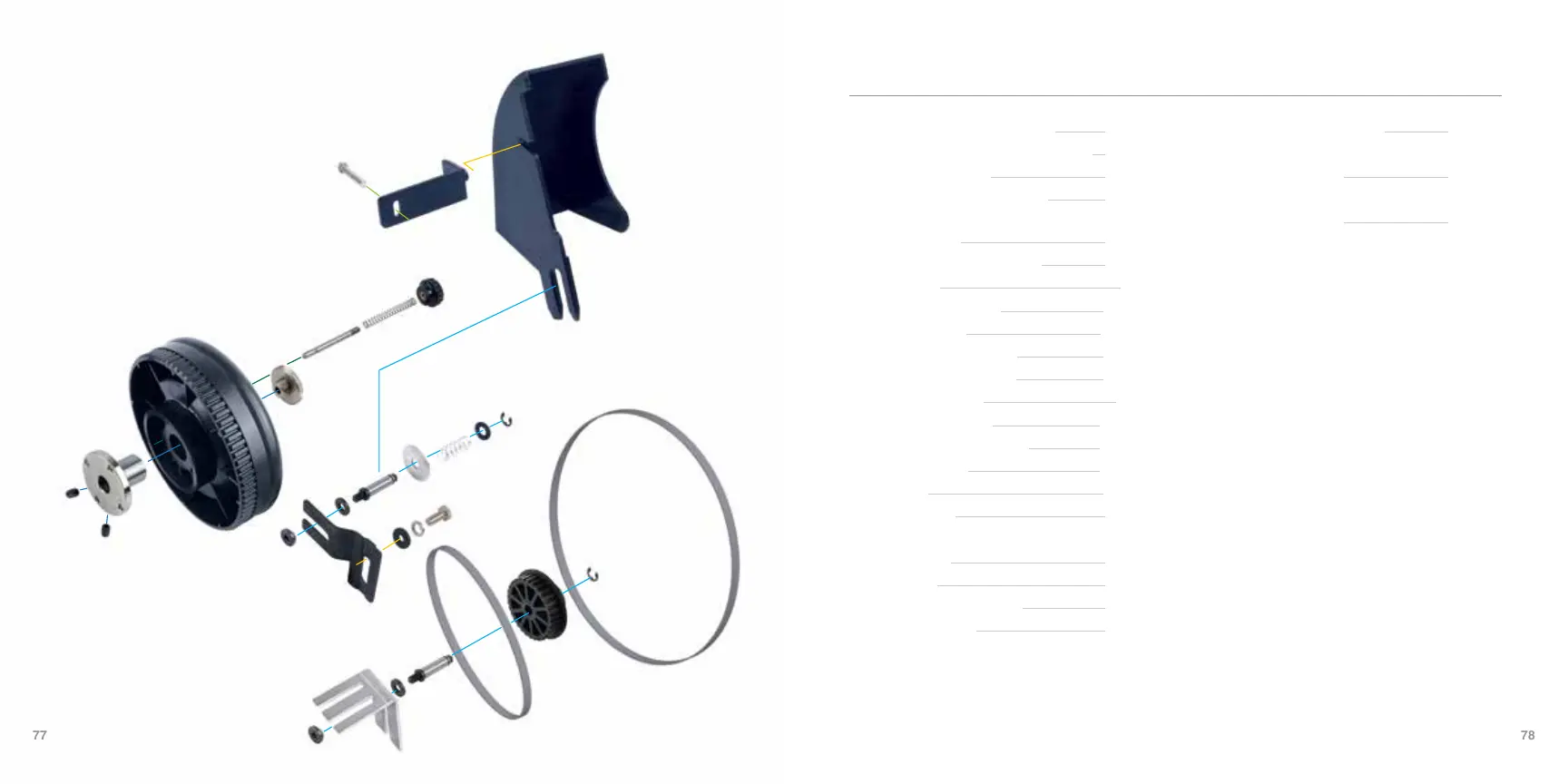

GROUP 6: Dynamic Transmission
KEY PART NAME PART # KEY PART NAME PART #
1 Posi-Pin
®
Knob For Shaft 100540
2 Posi-Pin Nut - Reverse Thread 100536
3 Posi-Pin Spring 100539
4 Posi-Pin Wheel Bushing 100537
5 Posi-Pin Quick Release
Shaft 3/16" 100538
6 Power Plus™ Flywheel 100181
7 E5 Ring D116
8 Idler Pulley Shaft W061-1
9 Idler Pulley W061-A
10 Idler Pulley Washer W061-6
11 Idler Pulley Set Nut W061-2
12 Pulley Bracket W059
13 Bracket Washer LT-2M-4
14 Bracket Lock Washer LT-2M-3
15 Bracket Bolt LT-2M-2
16 Screw W049-1
17 Set Screw 713100
18 Idler Pulley Stitch Master
®
L-Bracket 121448
19 Washer 121444
20 Compression Spring 121443
21 Fiber Washer 121445
22 Belt Cover and Bracket 120930
23 Cogged Sewing Machine
Timing Belt 15.8" 121447
24 Cogged Sewing Machine
Timing Belt 30.6" 121446
16
22
22
1
3
5
2
6
4
17
17
18
19 20
21
11
11
12 10
10
8
8
9
23
24
7
7
15
14
13
