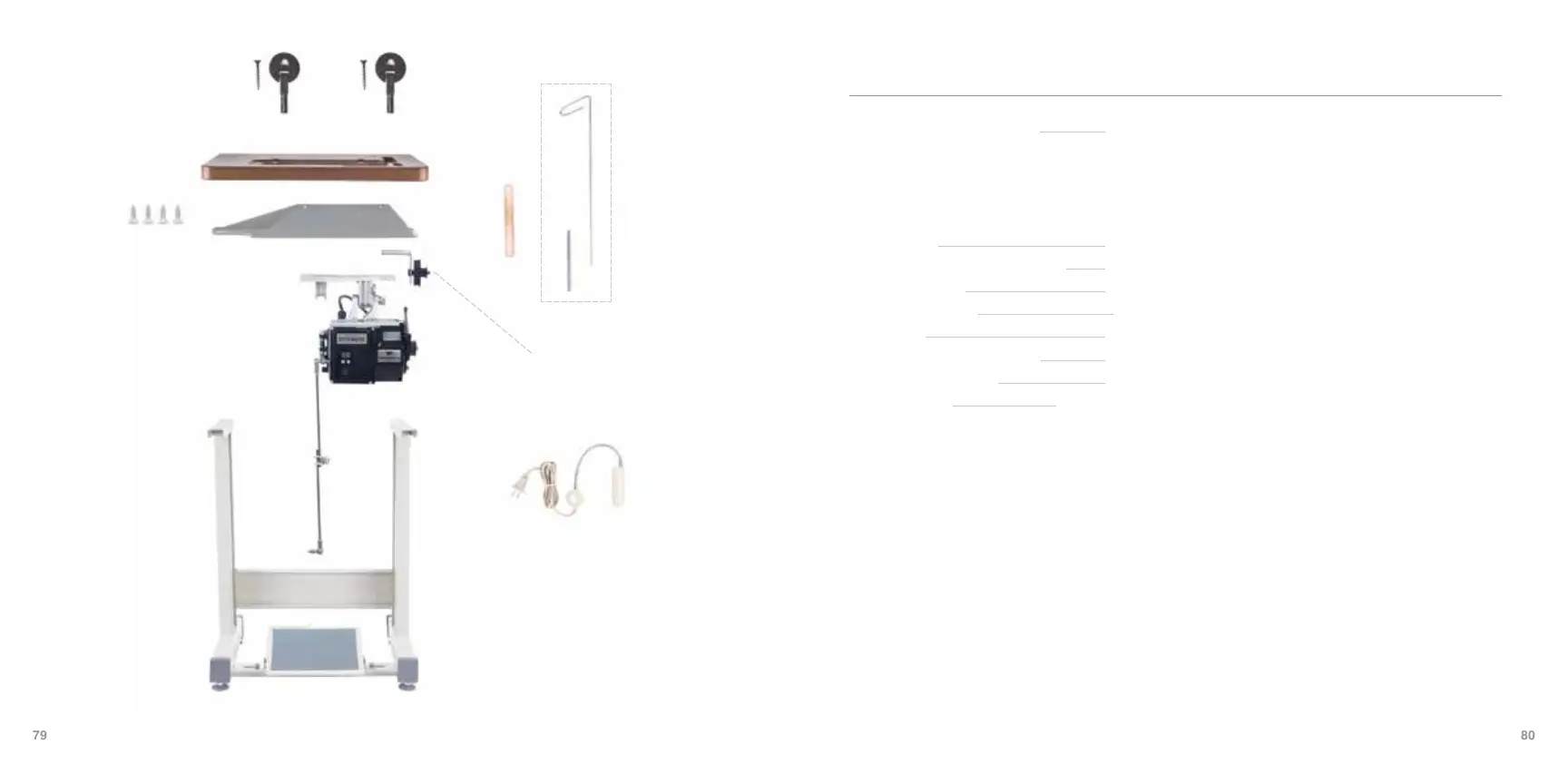

KEY PART NAME PART #
1 Legs for Stitch Master
®
121455
2 Workhorse™ Servo Motor 121616 (110V)
or 121617 (220-240V European Union)
or 121618 (220-240V Australia)
or 121619 (220-240V United Kingdom)
3 Oil Tray 120864
4 Table Top for Stitch Master 121454
5 Support Pin 120866
6 Thread Stand 18303
7 Hinge 432100
8 Flat Head Wood Screw 103528
9 Flat Head Screw 120462
10 LED Light 121551 (110V)
or 121552 (220-240V European Union)
or 121553 (220-240V Australia)
or 121554 (220-240V United Kingdom)
1
2
3
Idler Pulley
See p. 77
4
5 6
10
7
9
7
Not to Scale
Not to Scale
Not to Scale
8 8
To Next Page
