2

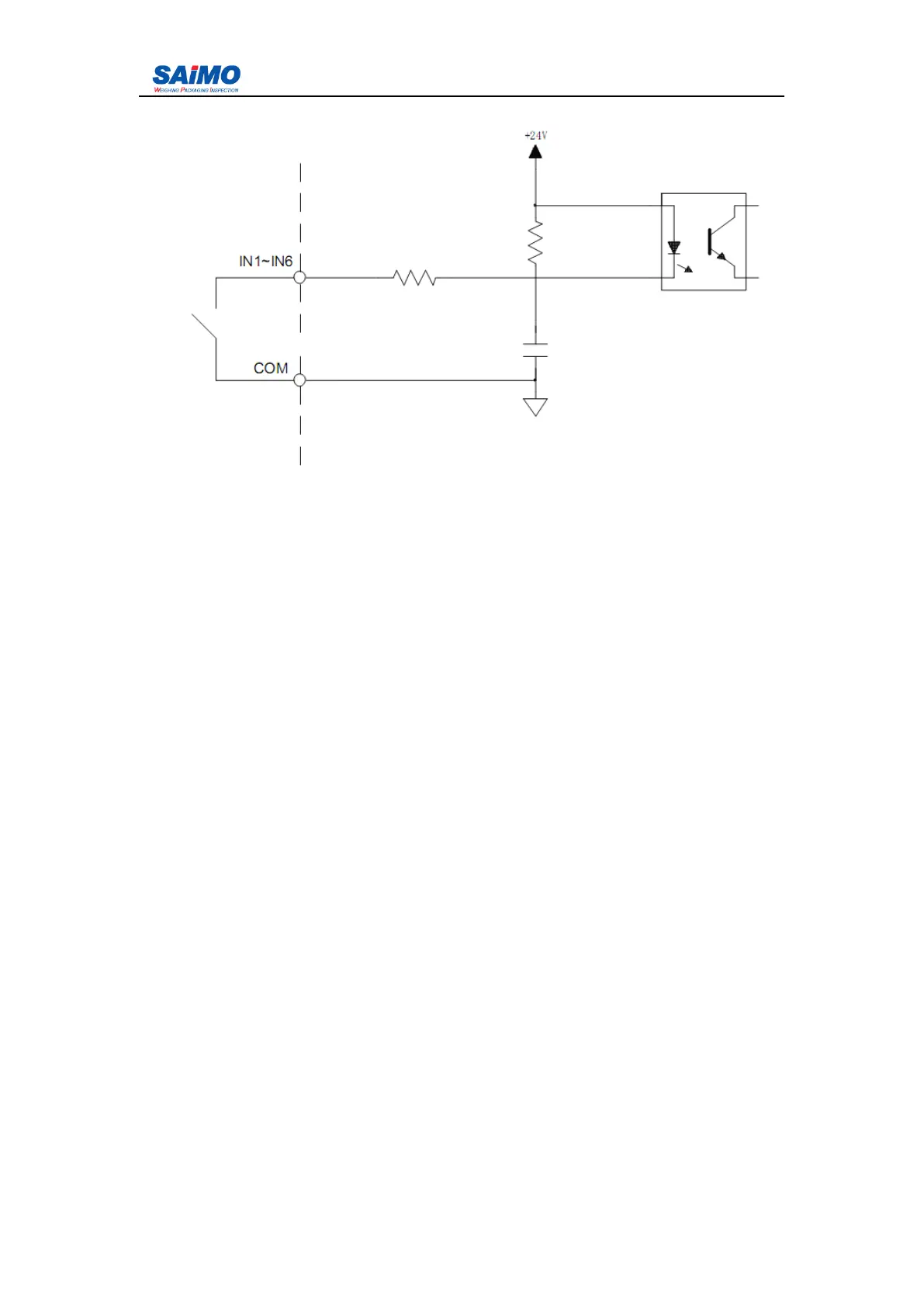

Figure 1- 5 Digital input inner wiring drawing
· Main board Digital Output
The main board provides 8 programmable outputs. Among of them, the 8
th
output
is relay output, optional for user, AC output (24~280V AC, 3amps) or DC
output (5`60V DC, 3amps) can be defined. The others are 0Coutput
24VDC,0.5amps).
Output can be defined as below by user:
High flow rate
Low flow rate
High load
Low load
High speed
Low speed
Slippage
Total output
Batch begin
Batch end
Volume measuring
ready
system error
