- 9 -

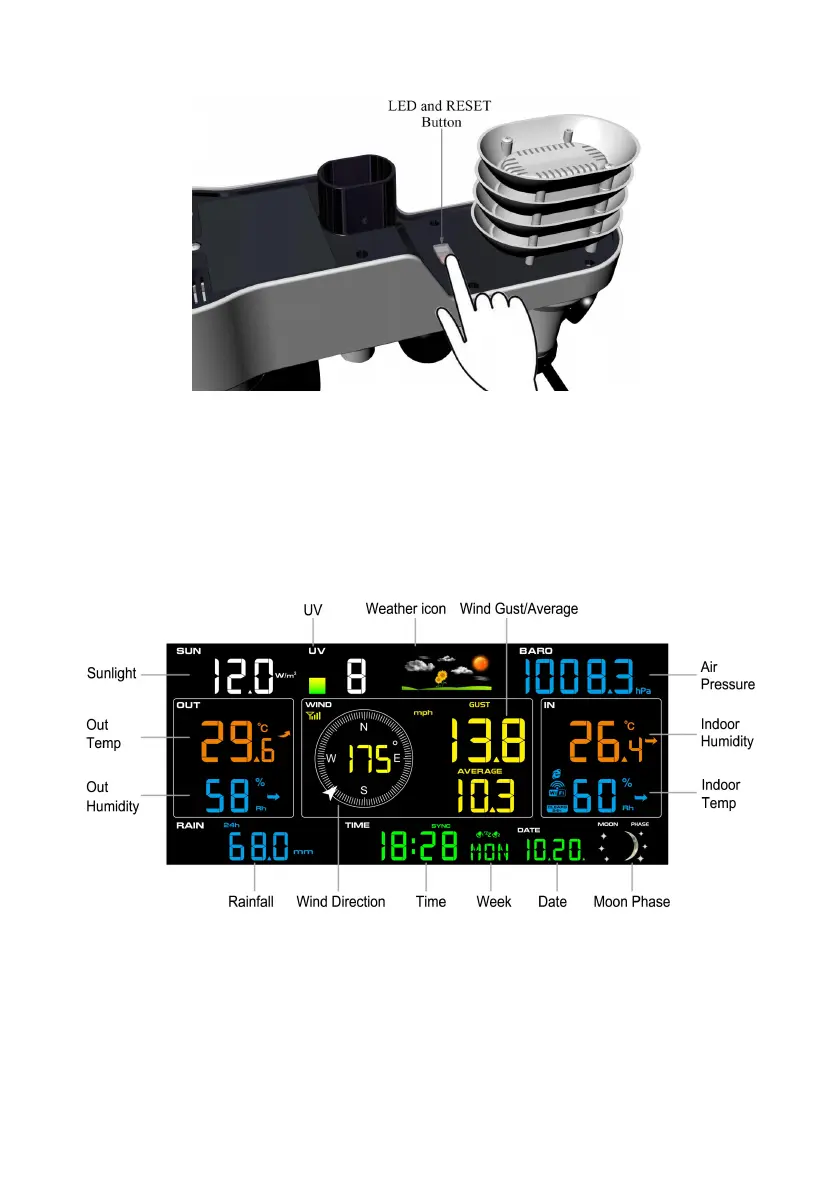

Figure 6
3.4 Display Console
3.4.1 Layout of Display Console
The following illustration shows display console features in
normal mode as below :
3.4.2 Setup the Display Console
1. Plug in the display console with power adapter. BL ON
will display in the time area for three seconds when powered
up.
