Chapter 4 Start-up and Operation
4.1 Keypad Description

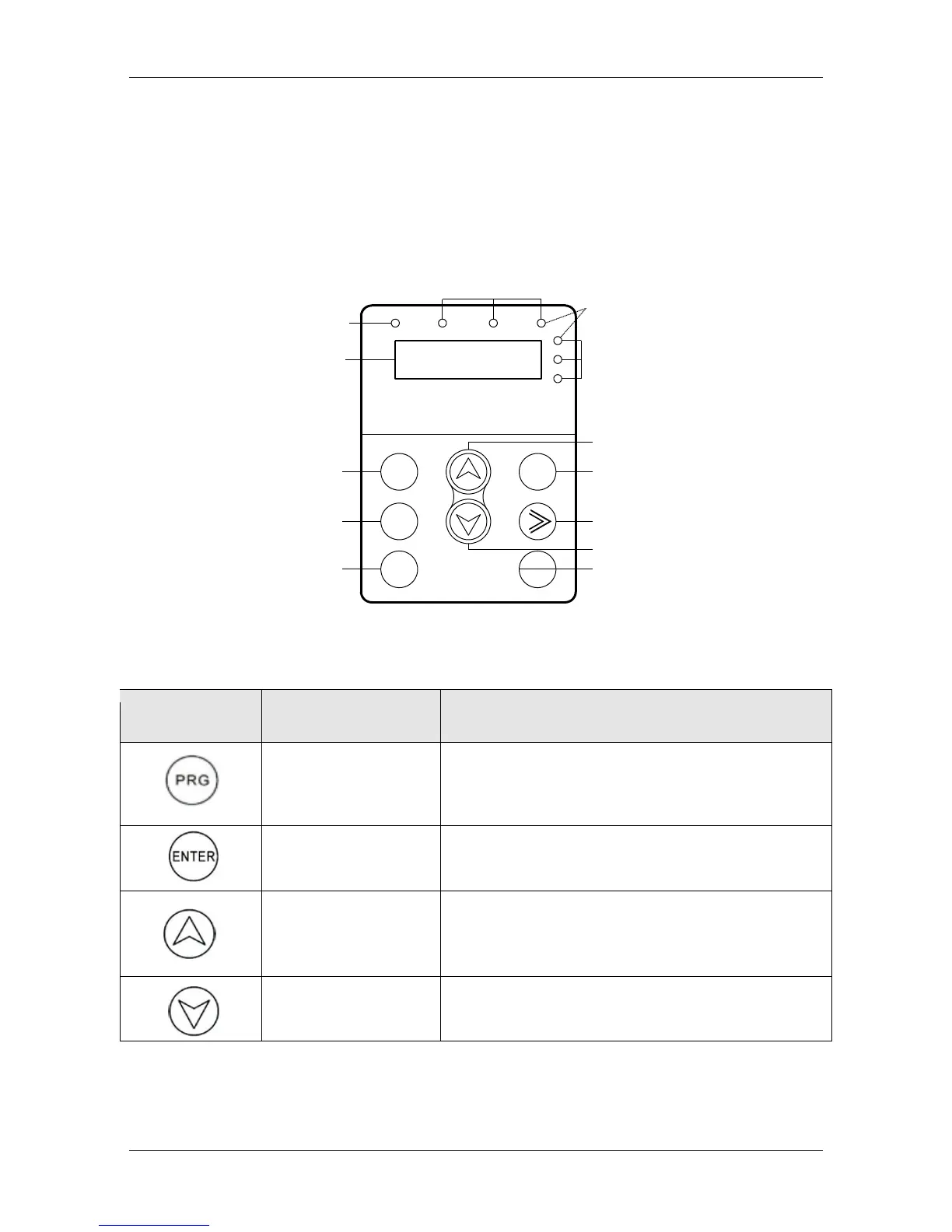

Figure 15 Keypad Schematic Diagram
Symbol
Button Name
Function Description
program/ exit key
Enter or exit of menu, parameter modification
data enter key
Progressively enter menu and confirm parameter
UP increase key
Progressively increase data or function codes.
DOWN decrease key
Progressively decrease data or function codes.
RUN
LOCAL/REMOT FWD/REV TUNE/TC
HZ
A
V
N o F u n ctio n
N o F u n ctio n
50.00
PRG
ENTER
QUICK
RUN
STOP
RESET
R U N /S T A N D B Y :O N
S T O P : O F F
P ro g ram /E xit K ey
S h ift K ey
R u n K ey
D ata E n ter K ey
U p In crease K ey
S h ift K ey
D o w n D ecrease K ey
S to p /F au lt R eset K ey
D ig ital D isp lay
In d icato r L ig h t
