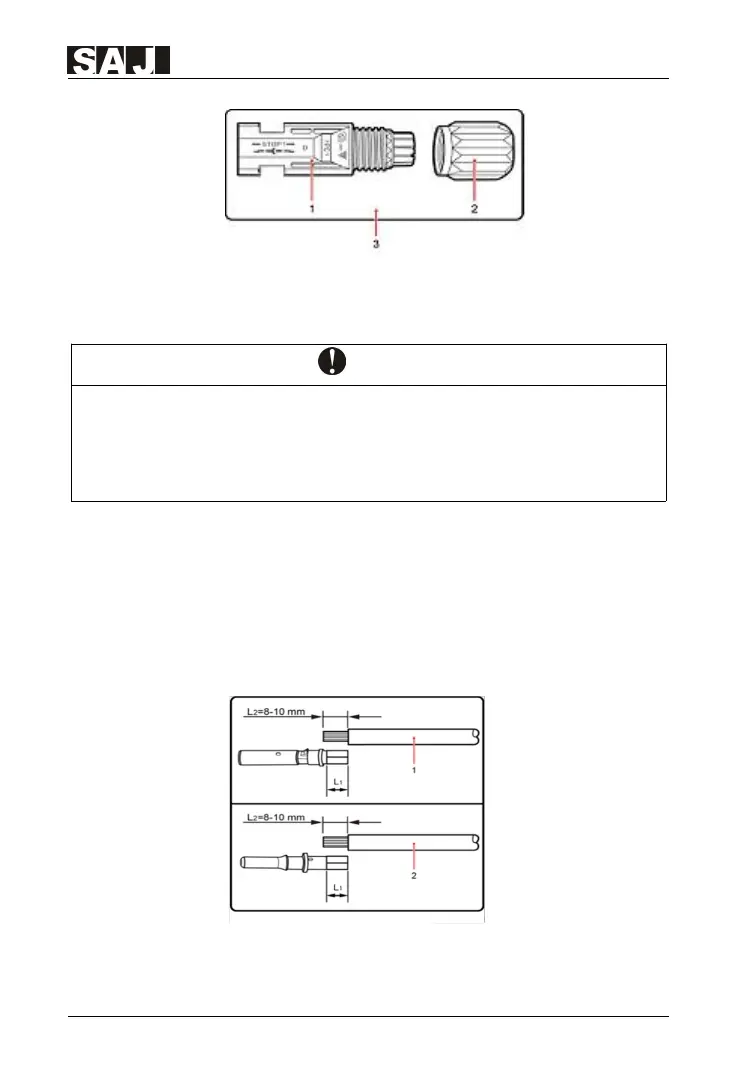

Figure 5.13 Cathode Connector
1. Insulated Enclosure 2. Lock Screw 3. Cathode Connector
· Please place the connector separately after unpacking in order to avoid confusion for
connection of cables.
· Please connect the positive connector to the positive side of the solar panels, and connect
the cathode connector to the cathode side of the solar side. Be sure to connect them in right
position.
Connecting Procedures:
1.Tighten the lock screws on positive and cathode connector.
2.Use specified strip tool to strip the insulated enclosure of the positive and
cathode cables with appropriate length.
1.Positive Cable 2. Cathode Cable
Figure 5.14 Connecting Cables
To Next Page
