R5 Series
Equipment information
Connection way, running state, basic information, running information,Power
information and events information of the communication of the inverter could be
checked.
1.Click “Basic Information”
Inverter model, Module SN code,Module firmware version,Communication board
firmware version,Main board firmware version,Slave board firmware version
could be checked.

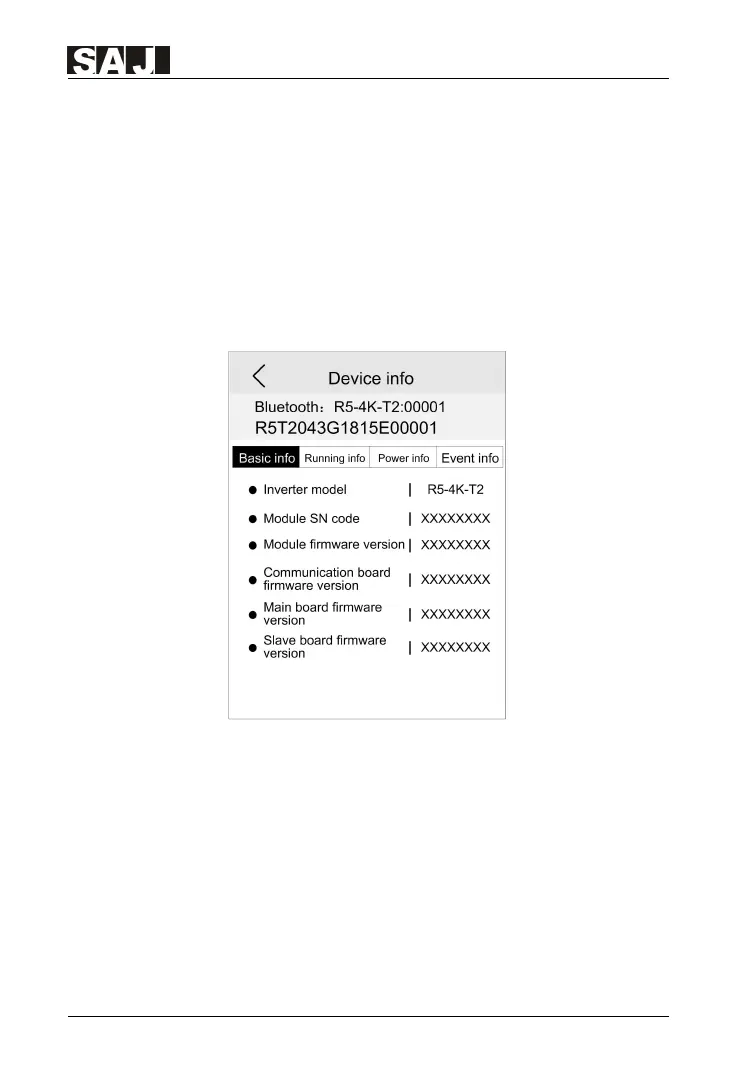

Fig. 6.3 Basic information
2.Click “Running Information”
PV information (voltage and current at PV terminal),Grid power information
(voltage, current and frequency at AC terminal), etc.
