14

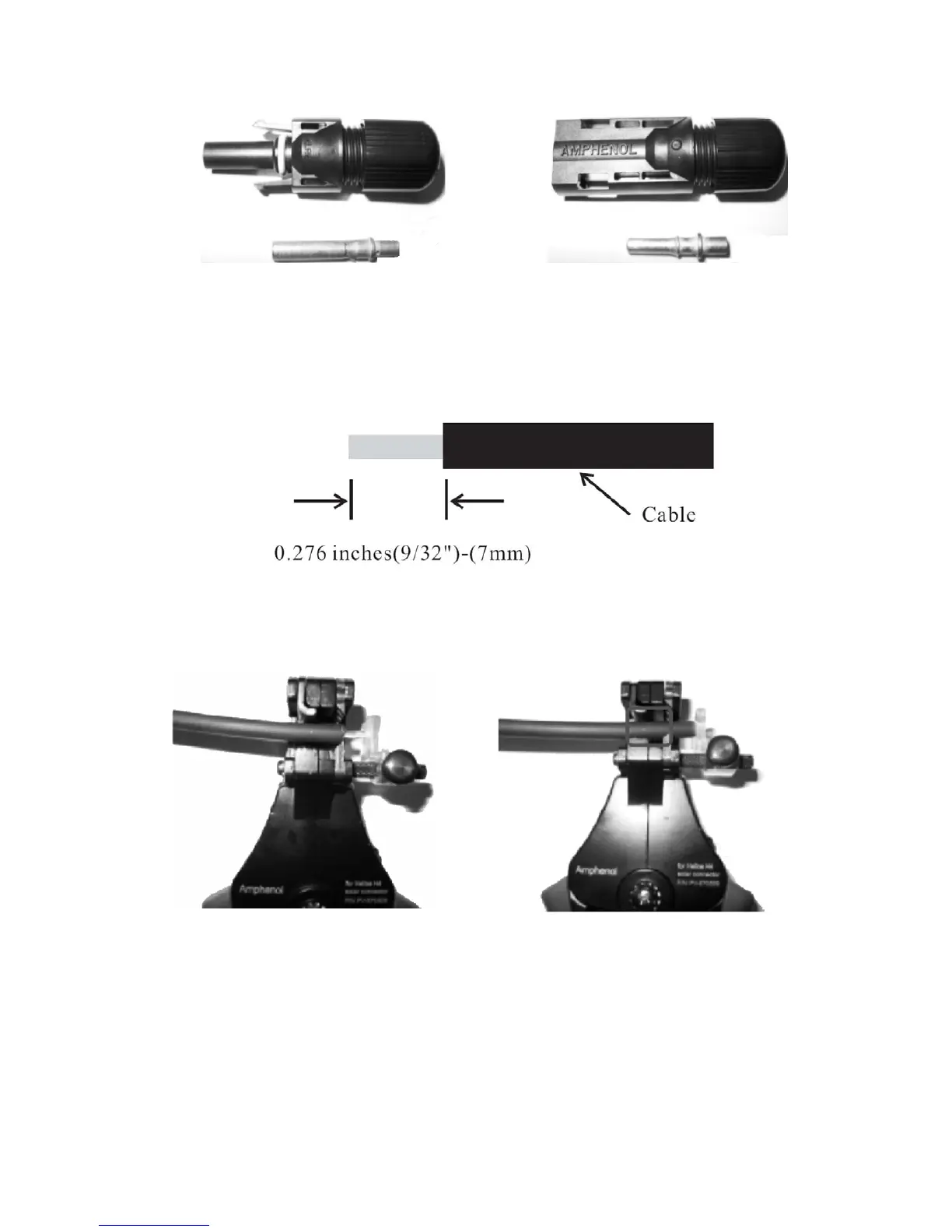

Male side connector (M) Female side connector (F)
Figure 4.8
Assembly Instructions:
1) Strip the cable with the length 0.276 inches (9/32")-(7mm) and please be careful NOT to
nick conductors.
Figure 4.9
2) Use specified strip tool in this step. Adjust the strip stopper and put the cable in
corresponding notch to strip the length of 7mm. See below figures.
Figure 4.10 Figure 4.11
3) Insert stripped cable into contact barrel and insure all conductor strands are captured in
the contact barrel and the conductors are visible in the contact barrel observation hole.
See below figures.
To Next Page
