SAJ Sununo-TL Series Installation Manual

15
Pin contact
Socket contact
Figure 4.12
Figure 4.13

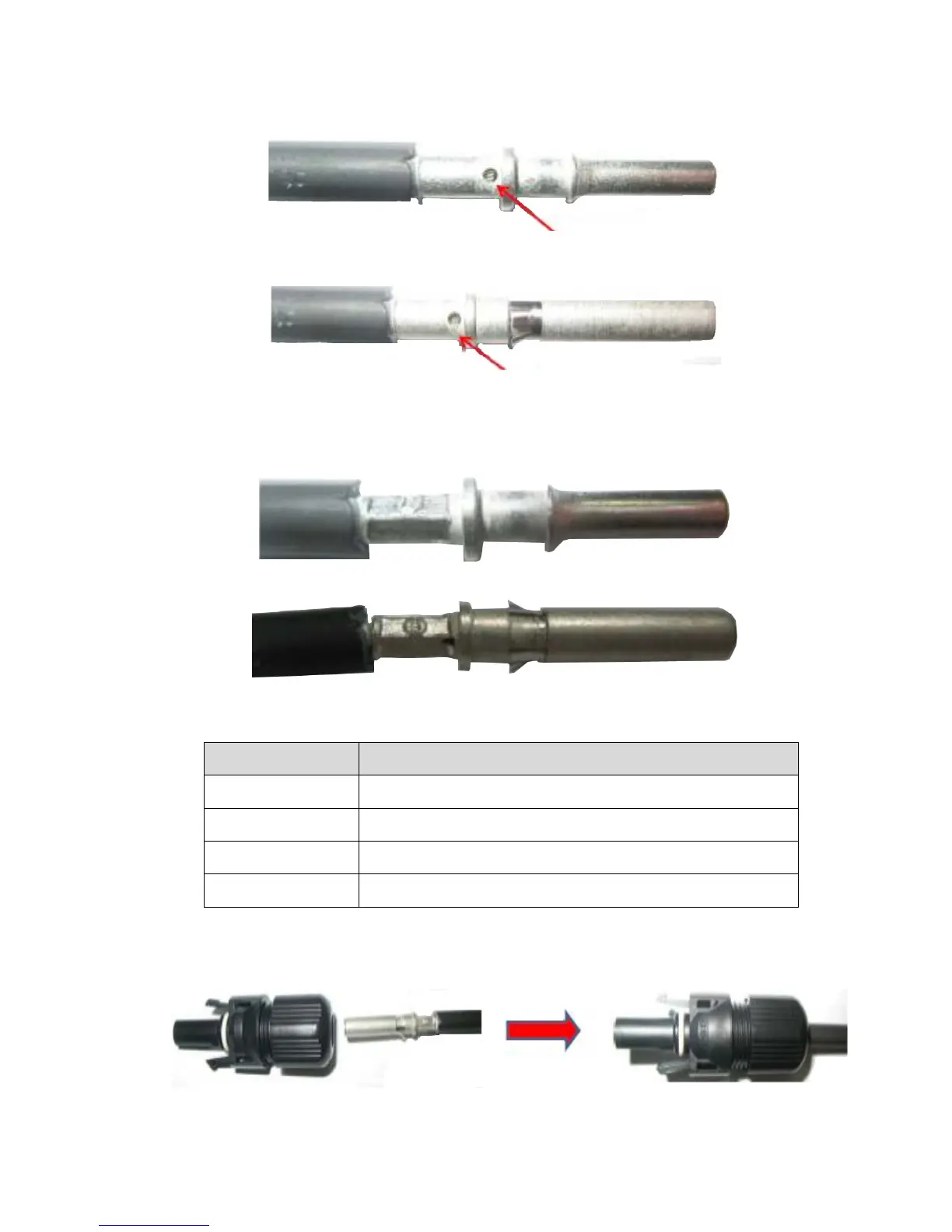

4) Crimp contact barrel by using the hex crimping die, ensure it is fixed.See below figures.
Crimped pin contact
Crimped socket contact
Figure 4.14
Cable requirements:
Cable Size Cable pull – out force requirement
2.5 mm
2
Min. 310 N (70 Lbs)
4mm
2
Min. 400 N (90 Lbs)
6 mm
2
Min. 450 N (100 Lbs)
10 mm
2
Min. 500 N (110 Lbs)
1) Crimp contact barrel by using the hex crimping die. Ensure it is fixed. See below figures.
Figure 4.15
