Sununo-TL3KA/4KA/5K

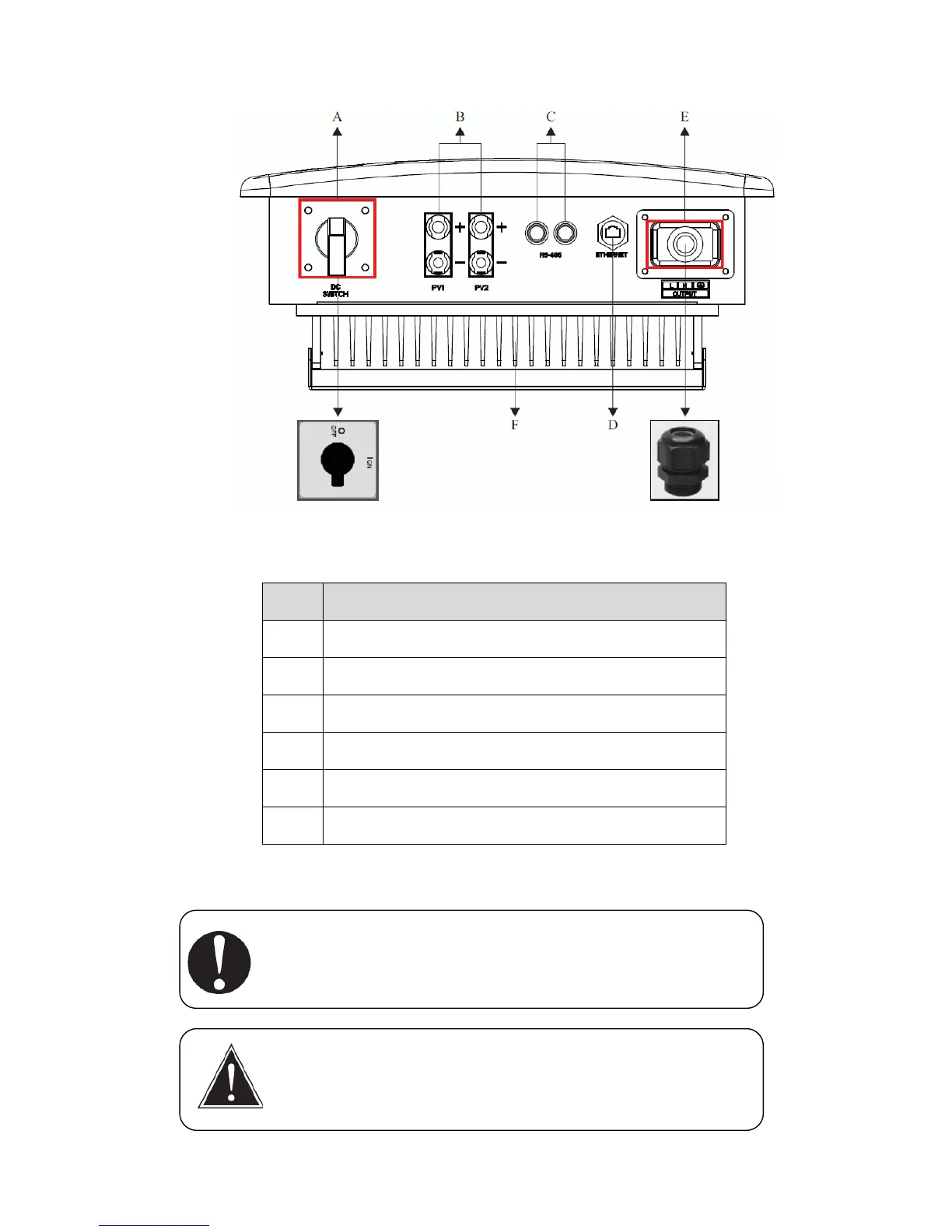

Figure 4.1
Object Description
A DC switch to turn off the inverter manually(optional)
B DC input
C Plug for connecting the RS485 communication module
D Plug for connecting Ethernet communication module(optional)
E AC output
F Heat sink
4.2 AC Side Connection
NOTICE
The cross-section of the AC cable should be more than 12 AWG.
DANGER
Danger to life due to potential fire or electricity shock.
Never connect or disconnect the connectors under load.
To Next Page
