Assembly Instructions:

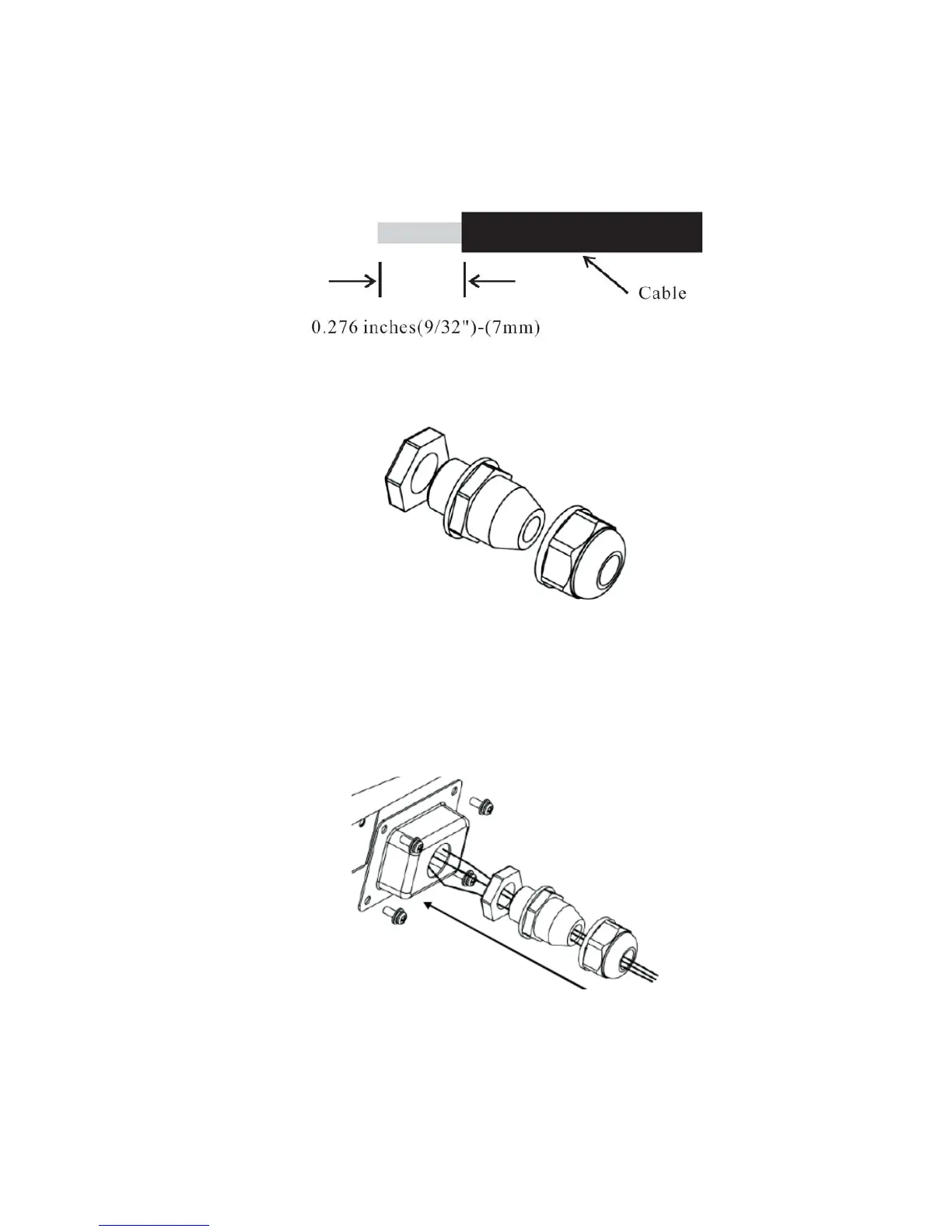

1) Strip the cable with the length 0.276 inches (9/32″) - (7mm) and please be careful NOT
to nick conductors.
Figure 4.2
2) Screw off and separate each component of AC connector as follows.
Figure 4.3
3) Pass the cable through each component from right to the left as follows. Tighten the
screws with 3N·m torque.
Figure 4.4
4) Use a screw driver and loose the three screws at the side of the straight plug. Then insert
the stripped N, L and PE cable accordingly to the corresponding position and fully
tighten the screws.
