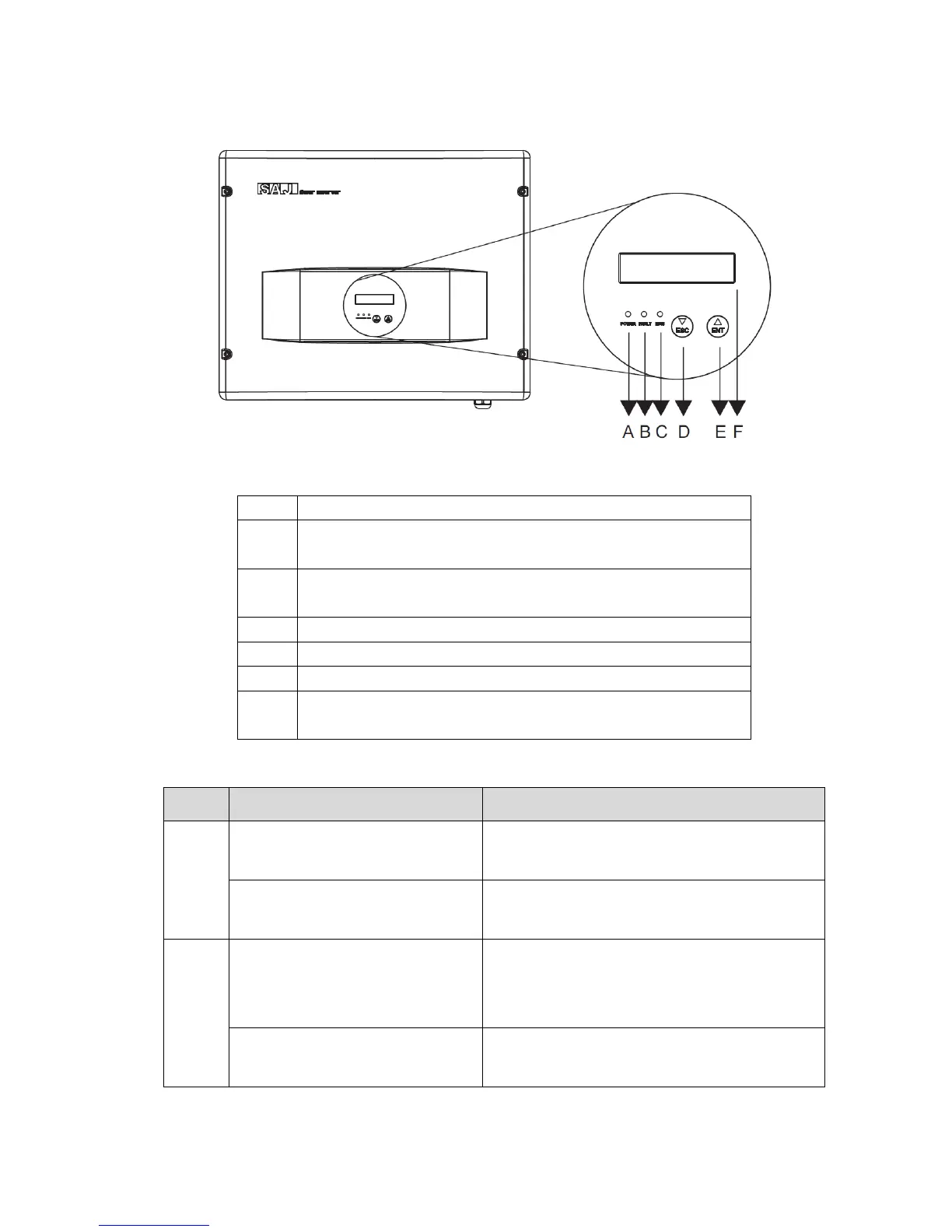

Figure 6.2
Object Description
A LED light – POWER. Yellow light shines when the inverter is
energized.
B LED light-FAULT. Red light shines when fault occurs in the inverter
and automatically goes out when the fault is removed.
C LED light-RUN. Green light flashes when the inverter runs good.
D ▼/ESC
E ▲/ENT
F LCD screen for viewing the running data, recorded information, and
setting parameters.
Name Operation Description
▼/
ESC
Press less than one second
It indicates the“▼”button, which can move the cursor
downwards in the menu, or decrease the setting.
Press more than one second
It indicates the “ESC” button, which can return to
parent menu or cancel the demand.
▲/
ENT
Press less than one second
It indicates the “▲” button, which can move the
cursor upward in the menu, or increase the setting
value.
Press more than one second
It indicates the “ENT” button, which can enter
submenu or confirm the command.
Note: If operation stops for one minute, LCD display backlight will turn off to save power.
