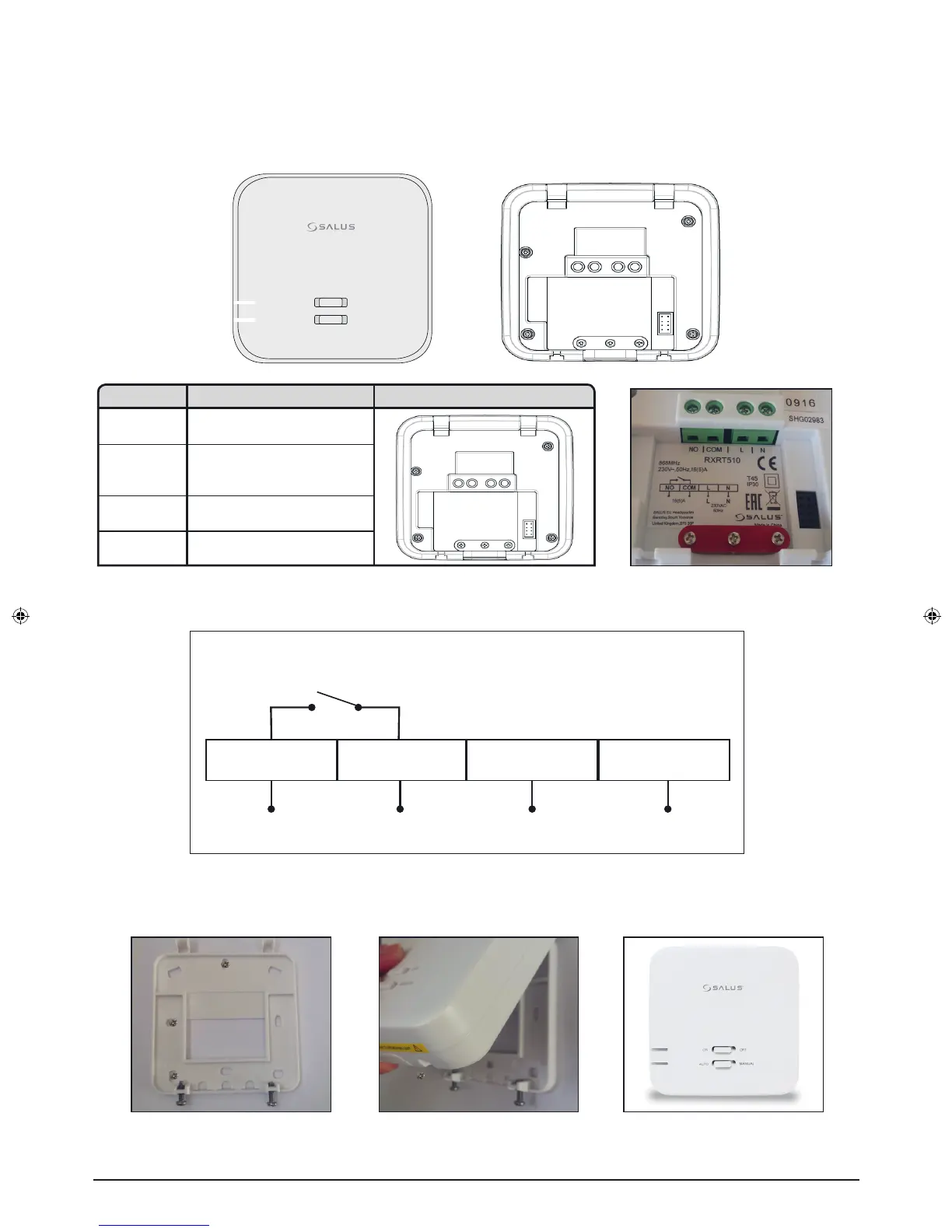

Connecting the RXRT510 receiver
ON
AUTO
OFF
MANUAL
Wall mounting
COMNO L N
Terminal Description Receiver Terminals
NO
COM
L
N
Switch Terminal
Common Switch
Terminal
Mains Live (230VAC)
Mains Neutral
Wiring
Fit the front housing.
Press lightly
Fix the backplate to the wall Align the front housing
at the top edge.
NO COM L N
L N
Electrical diagram
COMNO L N
Unscrew the backplate of the RXRT510 receiver in order to do the wiring connections. After that please switch
the receiver ON.
06 RT310RF Installation Manual
