RT RECEIVER
INTRODUCTION
The RXRT505 is used for the wiring connections and on/off
control. The RXRT505 is linked to your thermostat via radio
frequency (RF) signal.
Features
• LED status indication
• ON / OFF switch
• 868 MHz communication
CONNECTING THE RXRT505 RECEIVER
The RT Receiver should be mounted in a suitable location that is
both accessible for the connection of mains and control wiring,
and allows good reception of the RF signal. The receiver needs a
230V AC mains supply to operate, and this should be fused
appropriately (13A max.). The receiver should be mounted in a
location where it will not come into contact with water, moisture
or condensation.

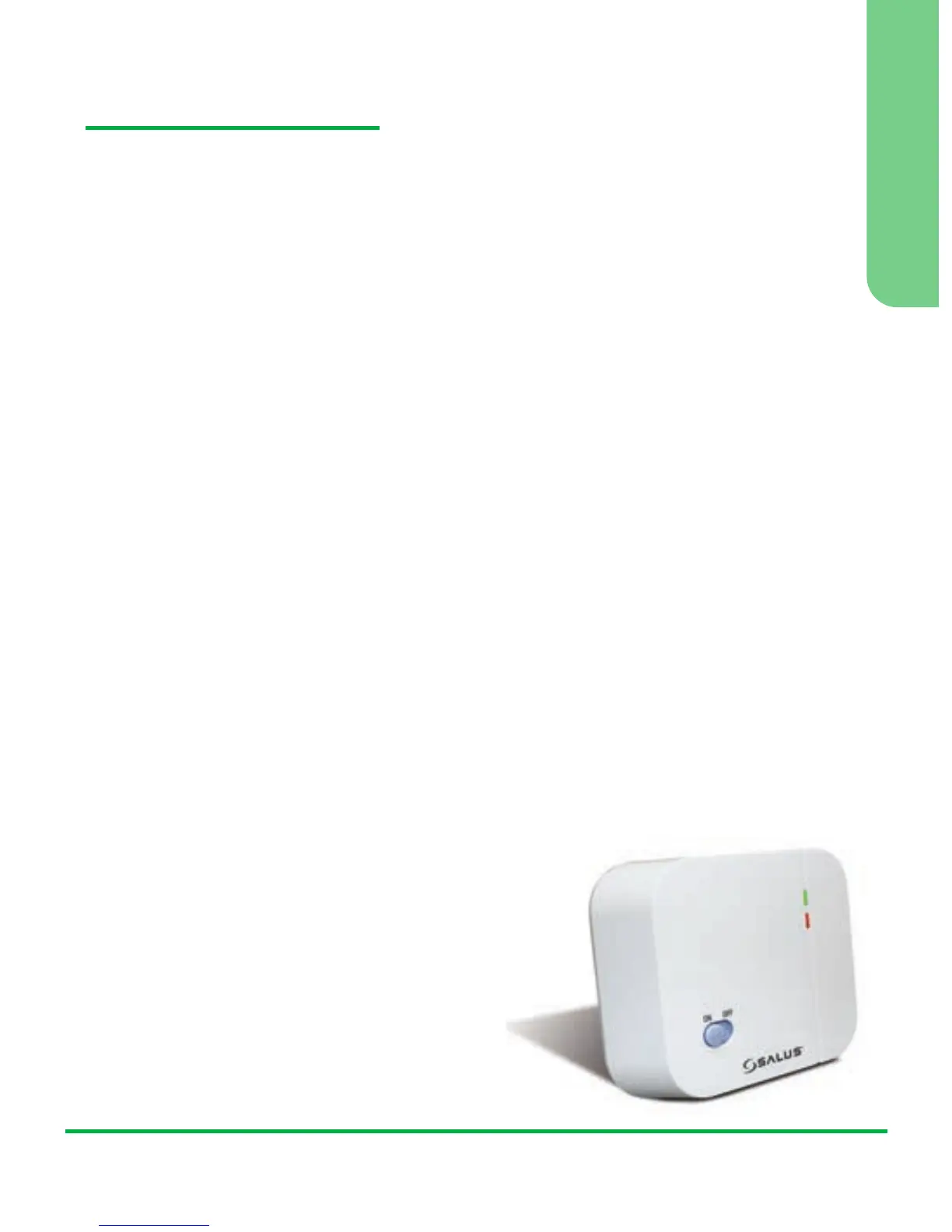

The receiver On/Off switch is accessible from the front face of the
receiver, as shown in this picture:
RXRT505 INSTRUCTION MANUAL
5
