SaMASZ KDT 260 User Manual

10
KDT
DISC MOWER
OPERATOR’S MANUAL
NOTICE:
Optional extra equipment should be ordered separately.
The mower is equipped with such elements as holders and brackets used to mount warning lights
and plates. Combined lights and reflectors are mounted on the warning plates.
Tab. 3. Recommended PTO shaft for rear disc mower
Model
Power
Lenght
Moment
Symbol
Clutch
Using
Producent
HP
mm / ft. in.
Nm
KDT 180
21
860 - 1208 /
2'10" - 3'11"
270
7G2N086CE007096MA
Overrunning
right
Tractor – mower
Bondioli &
Pavesi
KDT 220
35
910 - 1275 /
2'12" - 4'2"
460
7G4N091CE007096MA
KDT 260
KDT 300
KDT 340
KDT 341
KDT 220
S/SL/W
35
910 - 1275 /
2'12" - 4'2"
460
7G4N091CE007096MA
Tractor – mower
21
1010 - 1433 /
3'4" - 4'8"
270
8G2N101FX007001
Overload
Tine conditioner PTO
KDT 260
S/SL/W
35
910 - 1275/
2'12" - 4'2"
460
7G4N091CE007096MA
Overrunning
right
Tractor – mower
21
1010 - 1433 /
3'4" - 4'8"
270
8G2N101FX007001
Overload
Roller conditioner
PTO
NOTICE:
Lubricate the PTO shaft with high quality multi-purpose grease every 50 shaft operating
hours (Fig. 4). If access holes are available, lubricate fittings through access holes.

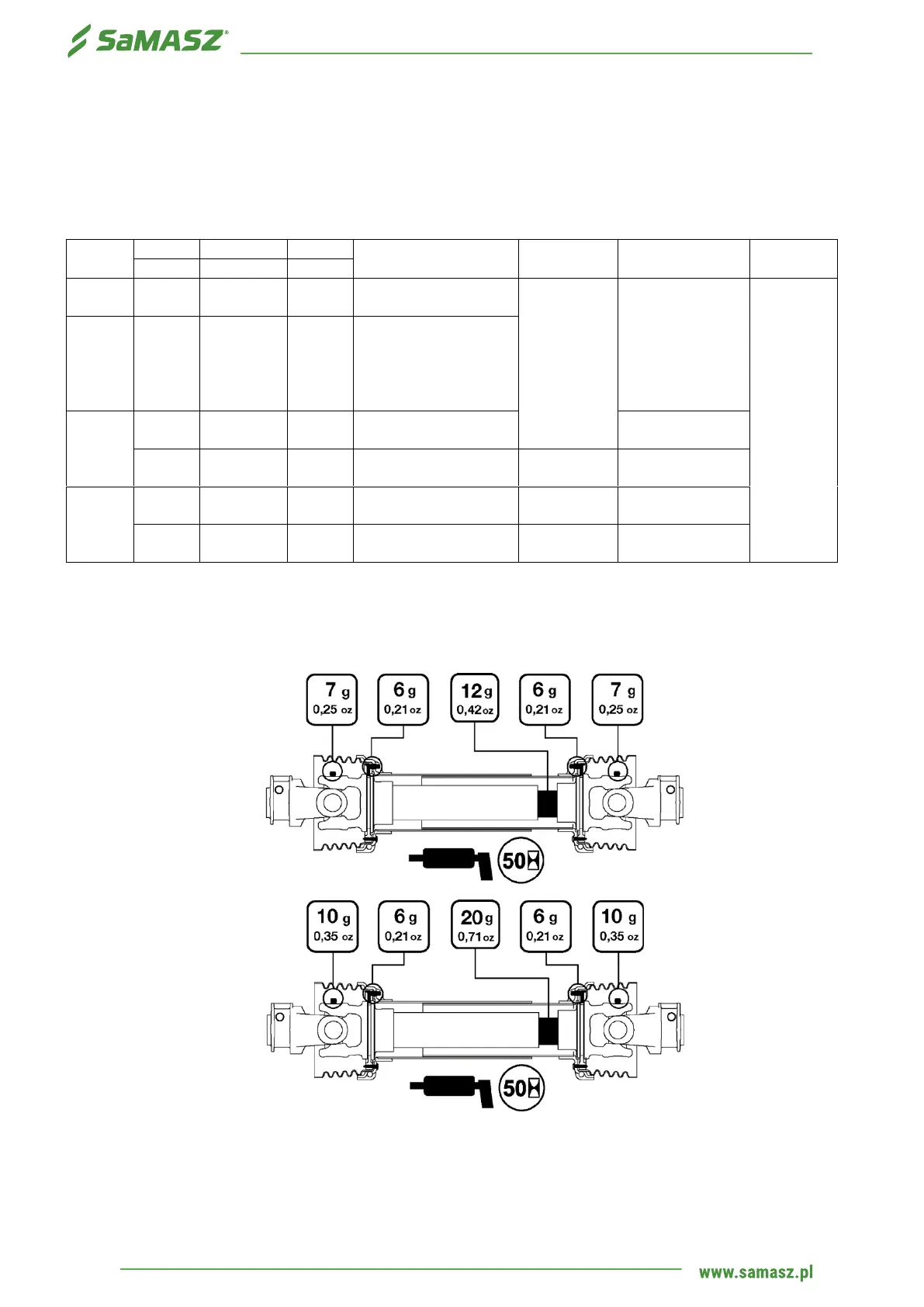

Fig. 4. PTO shaft lubrication points. Mounting directions
PTO shafts of other brands with equivalent parameters could be used afer first obtaining SaMASZ
permission.
PTO shaft’s end without
clutch – To be mounted on
the tractor’s side.
PTO shaft’s end
with overrunning
clutch – To be
mounted on
mower’s side.
7G2N086CE007096MA
7G4N091CE007096MA
