Mounting Orientation:
• Mounthorizontallyonahorizontalsurface(e.g.tabletoporashelf).PleaseseeFig.3.2.

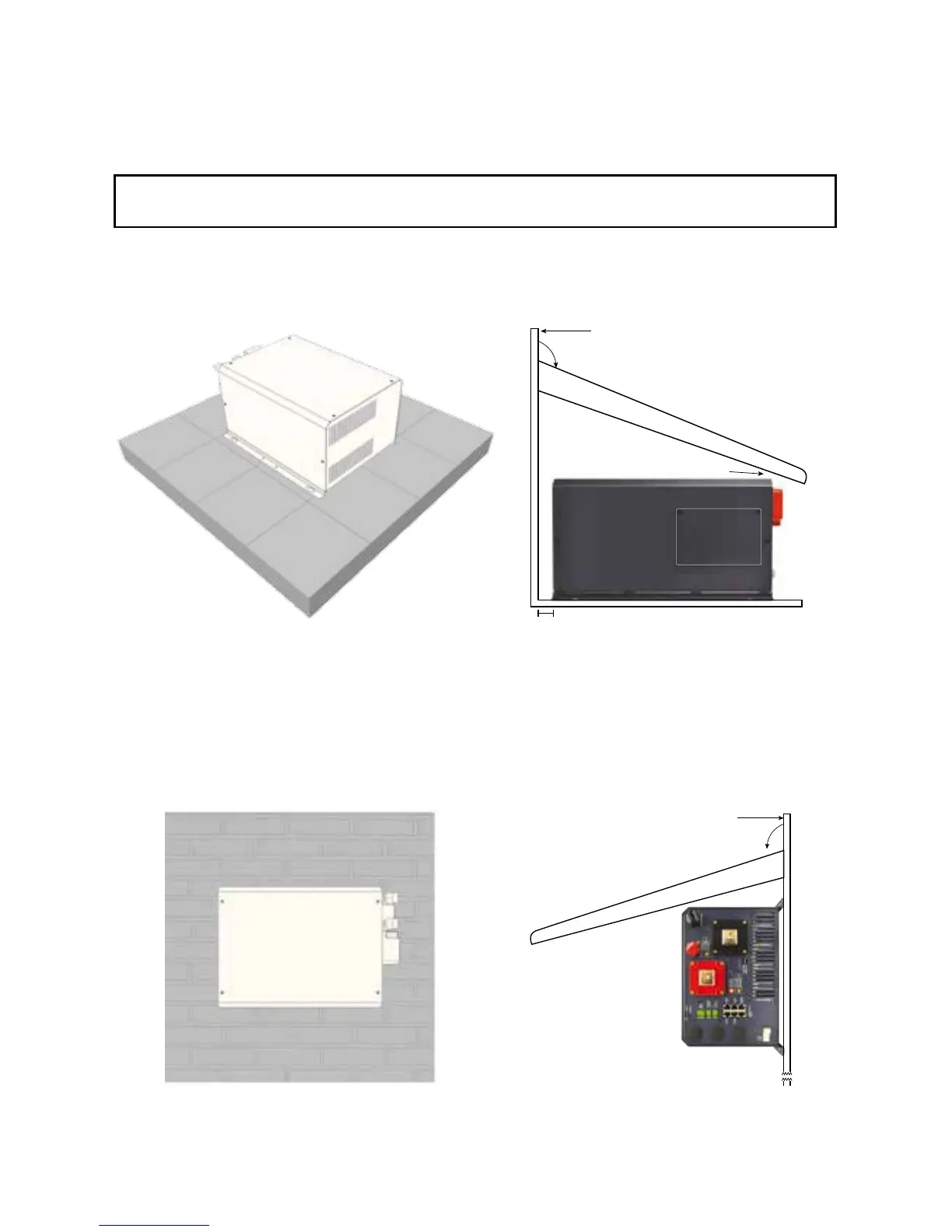

Fig 3.2 Mounting Arrangement: Horizontally On Horizontal Surface
• Mounthorizontallyonaverticalsurface(likeawall)withthefanaxishorizontalandthe
DC input terminals facing left. Please see Fig. 3.3.
Fig 3.3 Mounting Arrangement 1: On Vertical Surface
CAUTION! Ensure there is OVER 200 mm clear space surrounding the inverter for
ventilation.
ATTENTION! Assurer qu’il y a PLUS QUE 200 mm d’espace DÉGAGÉ entourant l’onduleur pour faciliter la
ventilation.
SECTION 3 | Installation
(a) Non Marine Installation (b) Marine Installation
10 mm Gap
Top surface of
Drip Shield
55 mm
115°
Wall
Top surface of
Drip Shield
105°
Wall
(a) Non Marine Installation (b) Marine Installation
