3.6 AC INPUT AND OUTPUT - LAYOUT AND CONNECTION ARRANGEMENT

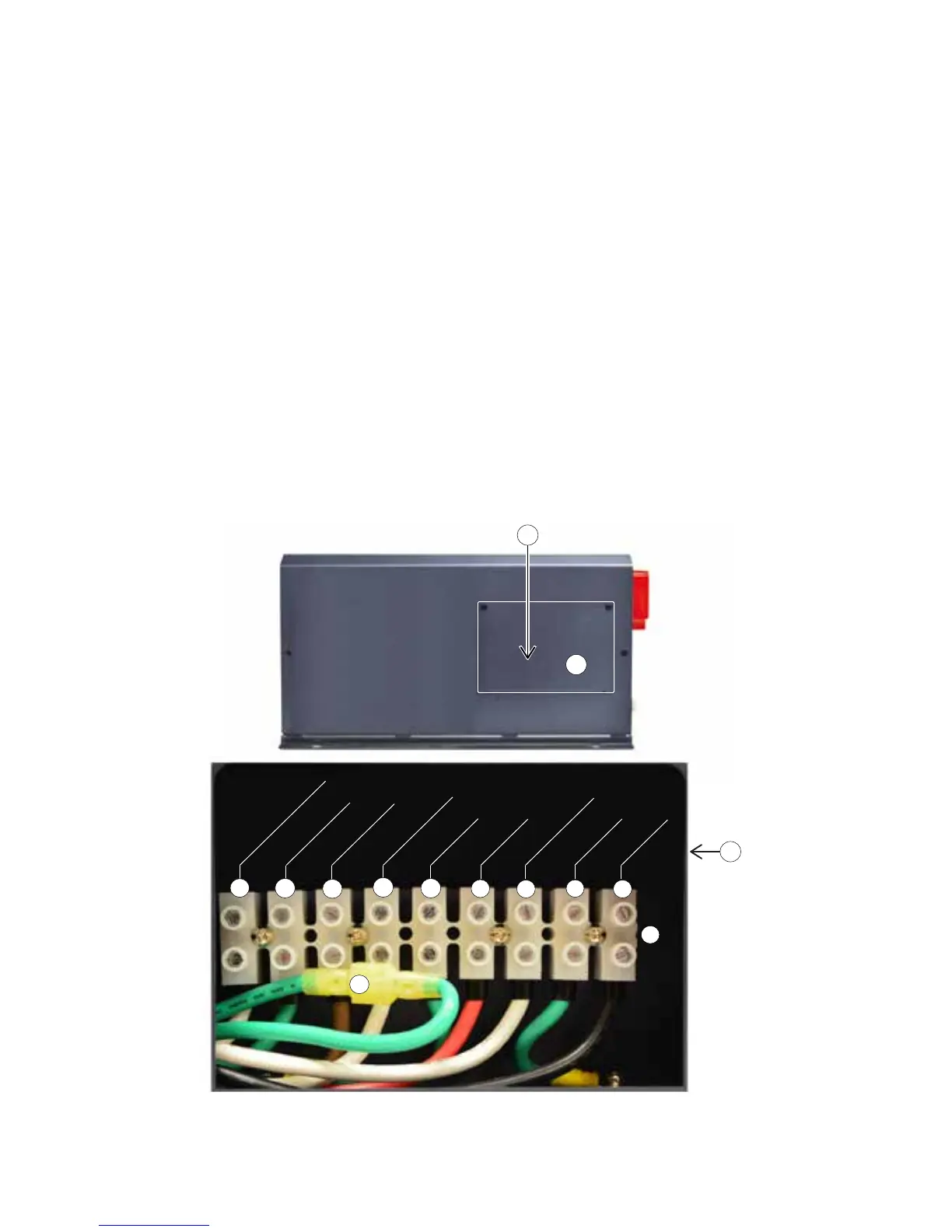

AC side layout and connection arrangement are shown in Fig 3.9.
1. Cover plate for pocket for AC Input/Output terminals
2. Pocket for AC Input/Output Terminals (behind cover plate 1)
3. AC Input/Output Terminal Block
- Terminal hole diameter: 6mm for up to AWG #6
- Set Screw: M4
4. Grid Input - Line
5. Grid Input - Ground
6. Grid Input - Neutral
7. Generator Input - Line
8. Generator Input - Ground
9. Generator Input - Neutral
10. AC Output - Line
11. AC Output - Ground
12. AC Output - Neutral
13. Male/Female Insulated Quick Disconnect for disabling Ouptut Neutral to chassis Ground bond in
Inverter Mode (Please see Section 4.5.1 to 4.5.3 and Fig 3.1.2)
1
13
3
2
[Behind Cover Plate

]
2
9
10
11
4
8
7
6
5
12
OUTPUT NEUTRAL
OUTPUT GND
OUTPUT LINE
GEN NEUTRAL
GEN GND
GEN LINE
GRID NEUTRAL
GRID GND
GRID LINE
Fig 3.9 AC Input and Output
