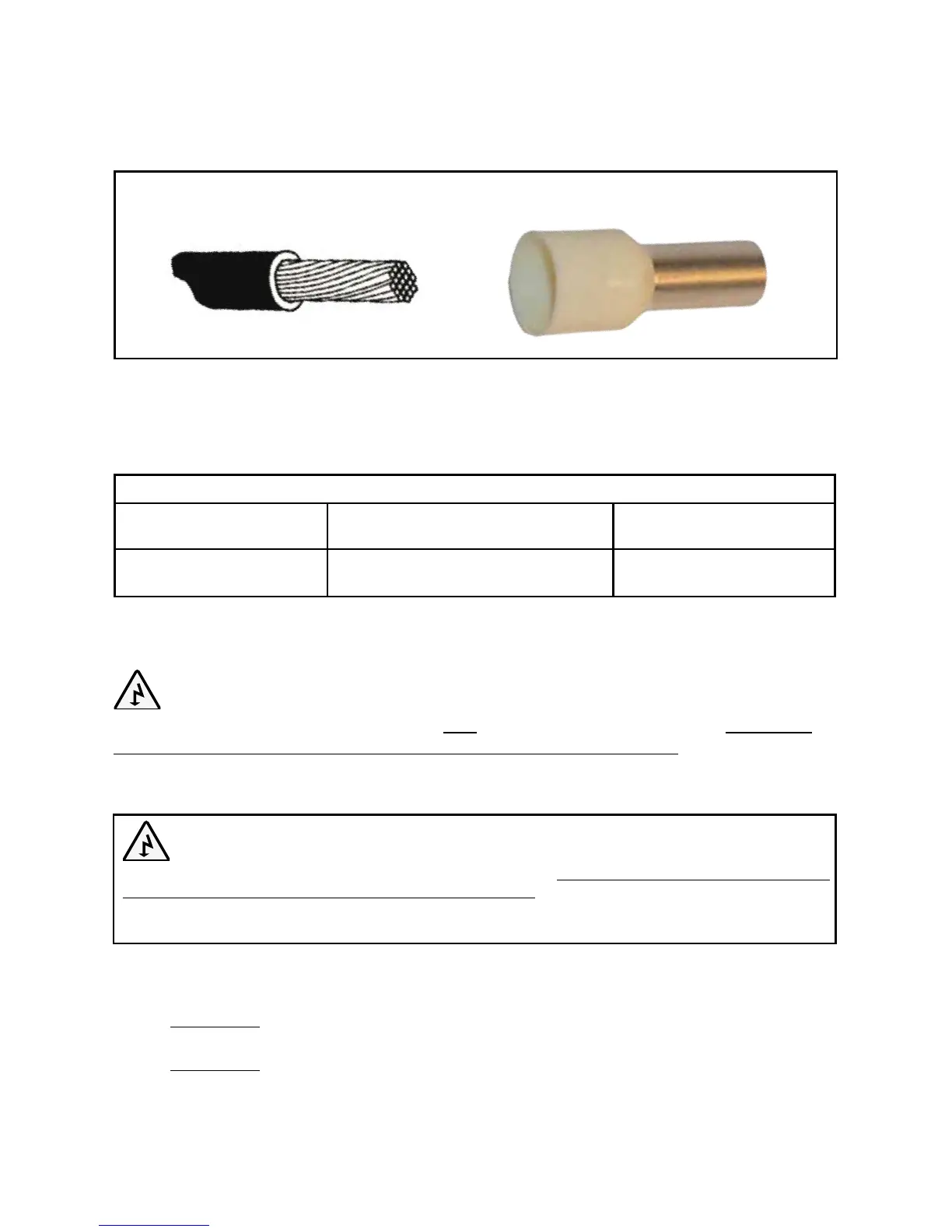

Stripped Wire End
Wire End Terminal
Crimp Barrel Portion
↓
→
Insert the terminated end of the wire fully into the terminal slot till it stops. Tighten the screw
rmly. Tightening torque for the screws – 7 to 12 Kgf*cm / 0.5 to 0.9 lbf*ft.
Fig 3.11 Stripped Wire End Terminal on AC Wiring
3.7.2 Tightening Torques
Tightening torques to be applied to the wiring terminals are given in Table below:
TIGHTENING TORQUES
Battery Input
Connectors
External Charger Input
Connectors
AC Input and Output
Connectors
70 kgf.cm
(5.0 lbf.ft)
35 kgf.cm
(2.5 lbf.ft)
7 to 12 kgf.cm
(0.5 to 0.9 lbf.ft)
3.8 SIZING OF WIRING AND BREAKERS - AC INPUT SIDE
WARNING!
AC Breakers for the AC input circuits have NOT been provided internally. These have to be
provided externally by the installer / user based on guidelines given below. Please note that
guidelines given below on wire sizing and over-current protection will be superseded by the
applicable National / Local Electrical Codes.
ATTENTION!
Breakers AC pour les circuits d’entrée AC ont pas été fournis en interne. Ceux-ci doivent être fournies à l’extérieur par
l’installateur / utilisateur sur la base des directives données ci-dessous. Se il vous plaît noter que les directives ci-dessous
sur dimensionnement des câbles et protection contre les surintensités seront remplacées par les nationaux / codes
électriques locaux applicables.
3.8.1 Tables for Wire and Breaker Sizing - AC Input Side
Tables 3.2.1 to 3.2.3 provide details of wire and breaker sizing for the AC input side.
 Table 3.2.1: For EVO-2212, 2224, 3012 and 4024 for AC Input Current Limit ("GRID
MAX CURRENT" / "GEN MAX CURRENT") set at 30A (Default Setting)
 Table 3.2.2: For EVO-2212, 2224, 3012 and 4024 for full rated AC input currents.
SECTION 3 | Installation
