3-8 EB 8222-1 EN
Design and principle of operation
Table3-3: Weights for Type3310 Valve
Valve
NPS 1 1½ 2 3 4 6 8 10 12
DN 25 40 50 80 100 150 200 250 300
Weights
Valve
PN16 B1 6.6 9.5 11.6 18.3 29.6 46.7 73 98 136
PN40 B1 6.6 9.5 12.9 20.9 32.8 52.2 91 129 178
Class150 RF 6 7.5 10.4 20.5 31.8 47.2 81.8 107 153
Class300 RF 7 10 13.4 23.6 39.1 62.1 102 143 201
Additional weight of standard insulat-
ing section
3.7 3.7 4.4 6.9 16.2 16.2 23.2 23.2 23.2

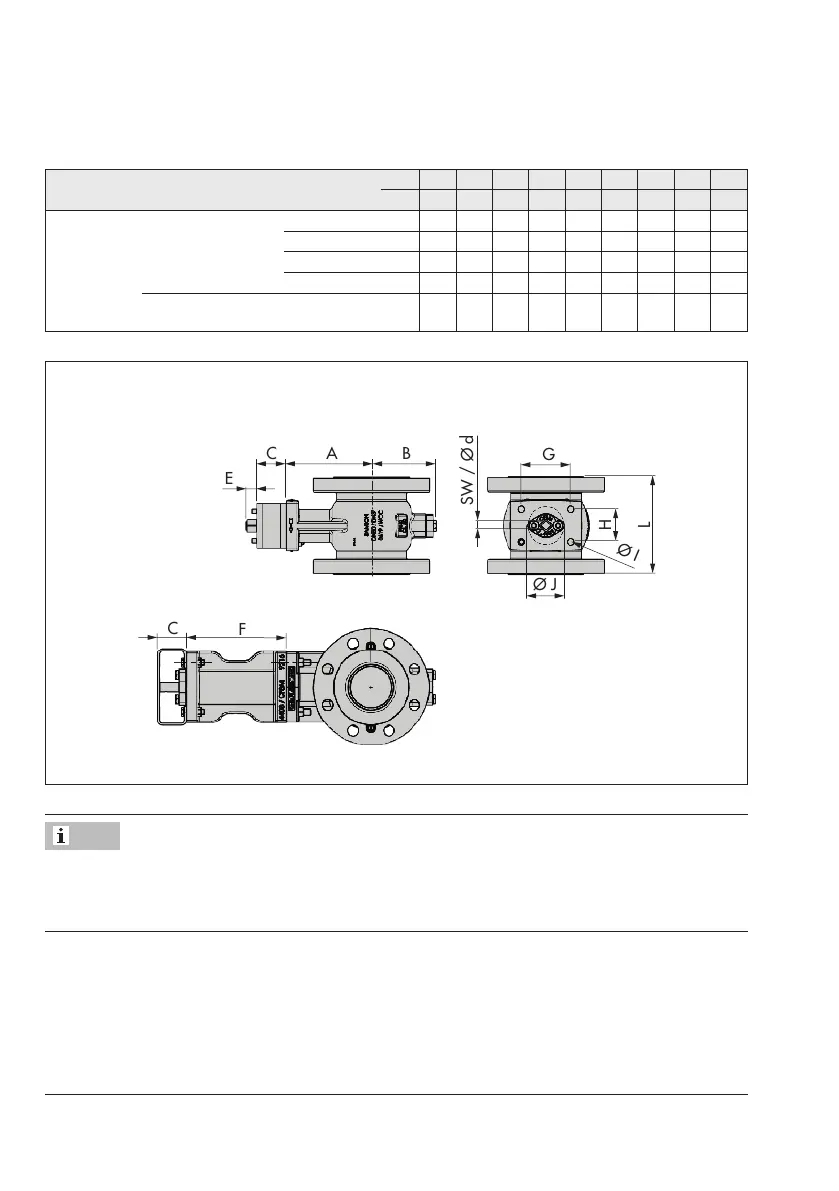

Dimensional drawings
Standard version of Type3310 Valve
E
G
Ø J
SW / Ø d
H
L
Ø I
C A B
C
F
Type3310 Valve with standard insulating section
For more dimensions and weights refer to the Data Sheet uT8222-1.
The associated actuator documentation applies to actuators, e.g.:
uT8321 for the SAMSON Type3278 Pneumatic Rotary Actuator
Note
