Samson 3310 - Page 30

5-4 EB 8222-1 EN
Installation
1
3
5
7
10
15
18
30
35
40
46
70/80
18
90
2
12
17
49
88
88
Valve seat
Stop bolt B
Stop bolt A

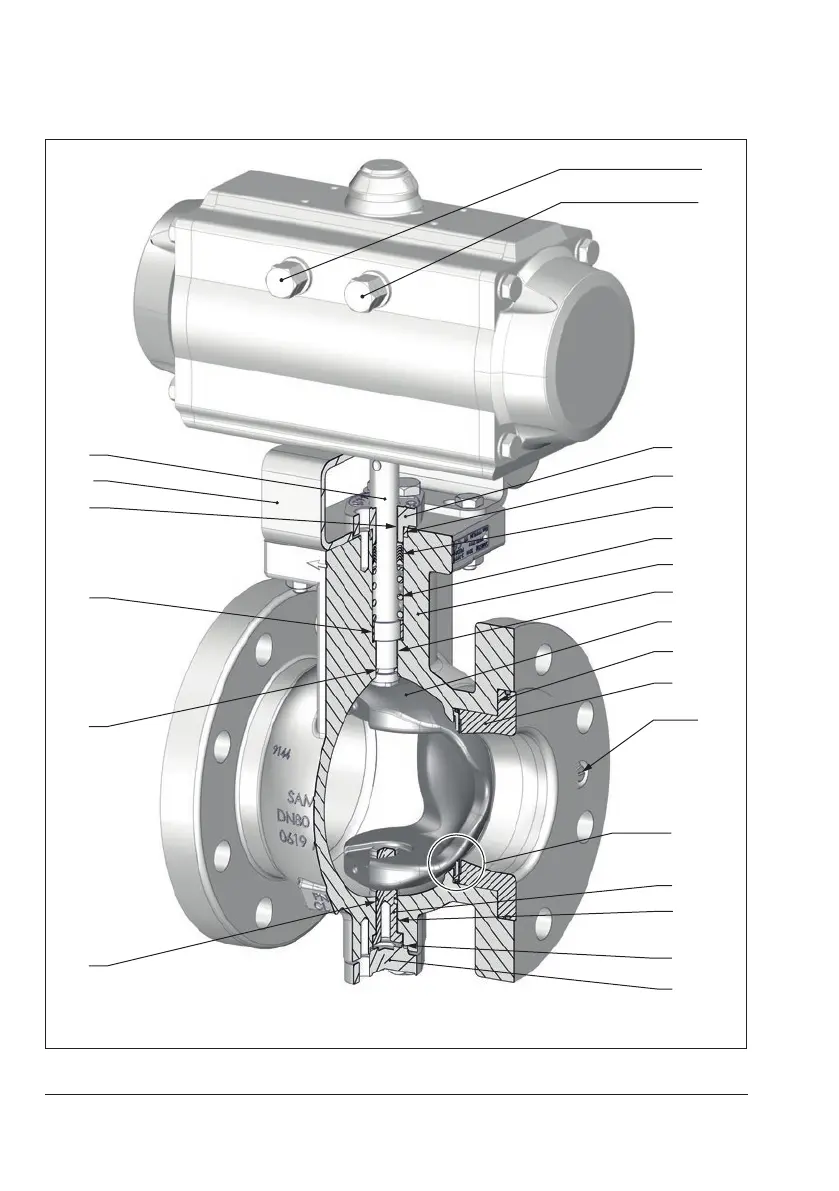

Fig.5-1: Sectional view of Type3310 Valve · Standard version with AIRTORQUE TypeSRP/DAP
Actuator
