Using the D-Sub Cable
1 Connect a D-Sub Cable
between PC IN [PC] jack on
the TV and the PC output
jack on your computer.
2 Connect a PC Audio Cable
between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
Using the HDMI/DVI Cable
1 Connect a HDMI/DVI cable
between the HDMI IN 2 jack
on the TV and the PC output
jack on your computer.
2
Connect a 3.5 mm Stereo plug
to 2RCA cable between the
DVI IN (HDMI2) [R-AUDIO-L]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
®
Each PC has a different back panel configuration.
®
When connecting a PC, match the color of the connection terminal to the cable.
®
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.

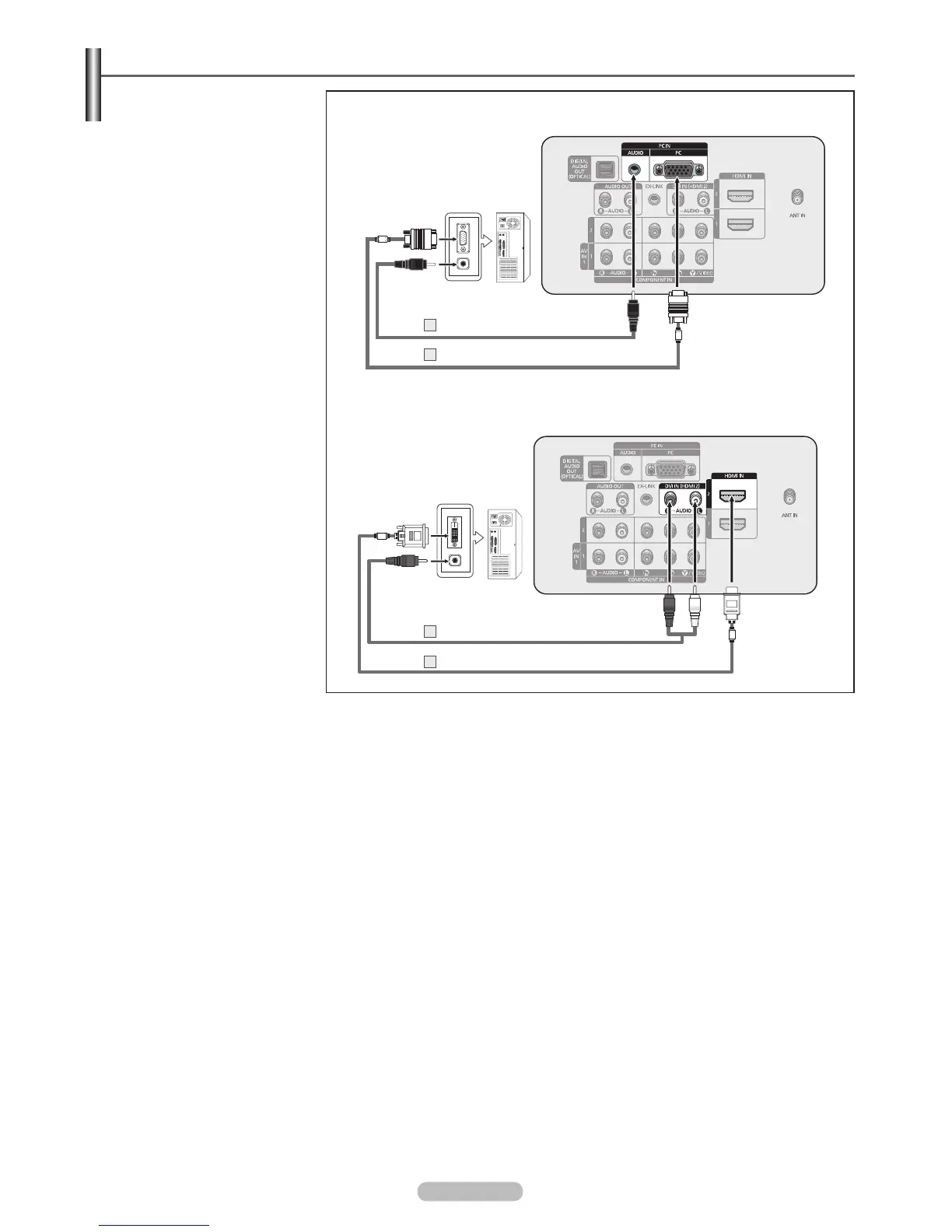

Connecting a PC
PC
TV Rear Panel
PC Audio Cable (Not supplied)2
D-Sub Cable (Not supplied)1
Using the D-Sub Cable
Using the HDMI/DVI Cable
TV Rear Panel
PC
3.5 mm Stereo plug to 2 RCA Cable (Not supplied)2
HDMI/DVI Cable (Not supplied)1
