Disassembly and Reassembly _ 17
Part Figure Description
Clutch Assembly
(continued)

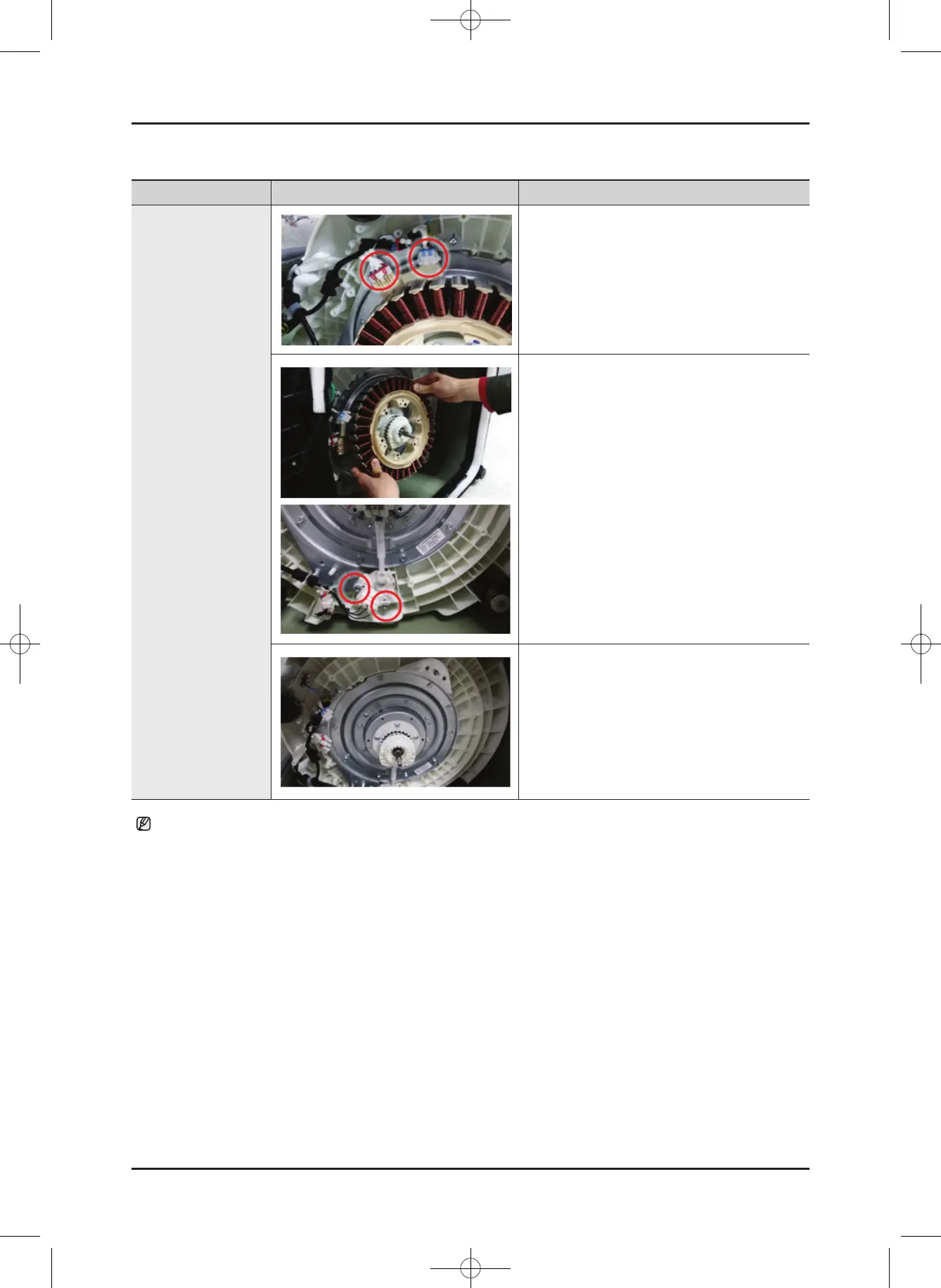

10.Separatethe2markedhousingsandthen
remove the DD-motor.
11.Pressthehooktoseparatethehousing.
12. Separate the slide guide and the coupling
by pulling them forward. Disassemble the
coupling and the spring.
13.Removetheallscrewsxingtheclutch
assembly and then separate the clutch
assembly.
Reassembly procedures are in the reverse order of dissasembly procedures.
