Deciding on where to install the indoor unit

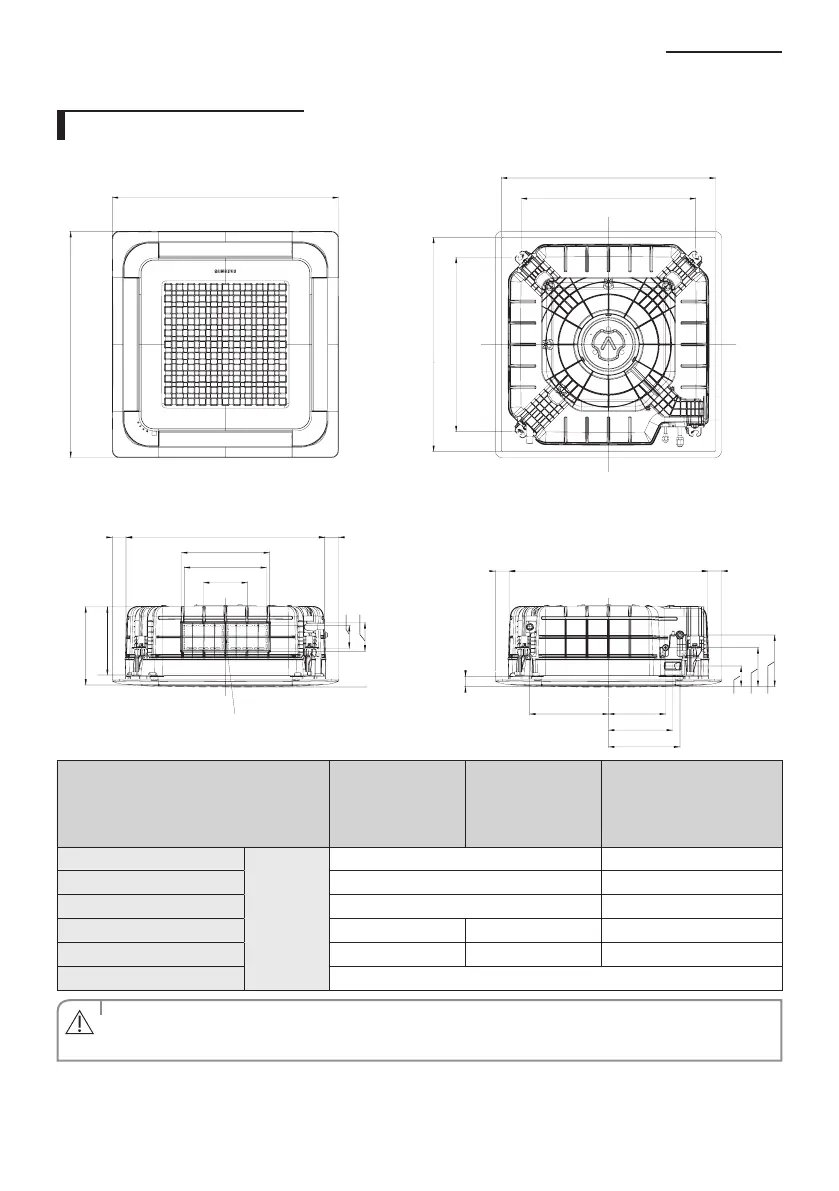

Drawing of the indoor unit
Unit : mm (inch)
AB
890~910 [35~36 (Celling opening)]
950 (37.4)
735 [29 (Suspension position)]
890~910 [35~36 (Celling opening)]
735 [29 (Suspension position)]
Sub duct connection
55 (2.2) 840 (33)
370 (14.6)
346 (13.6)
185 (7.3)
96 (3.8)
950 (37.4)
120 (4.7)
45 (1.8)
86 (3.4)
164 (6.5) 216 (8.5)
55 (2.2) 55 (2.2)840 (33)
330 (13) 240 (9.4)
270 (10.6)
300(11.8)
MODEL 018 024
030
036
042
048
A
Inch (mm)
8 (204) 11.3 (288)
B 10 (253) 13.3 (337)
Net dimension 33×8×33 (840×204×840) 33×11.3×33 (840×288×840)
Liquid pipe connection 1/4" (6.35) 1/4" (6.35) 3/8" (9.52)
Gas pipe connection 1/2" (12.7) 5/8" (15.88) 5/8" (15.88)
Drain hose connection OD : Ø0.98(25), ID : Ø0.79(20)
• This unit intended for free-air discharge or for connection to a duct connection supplying one room.
WARNING
