39
ENGLISH

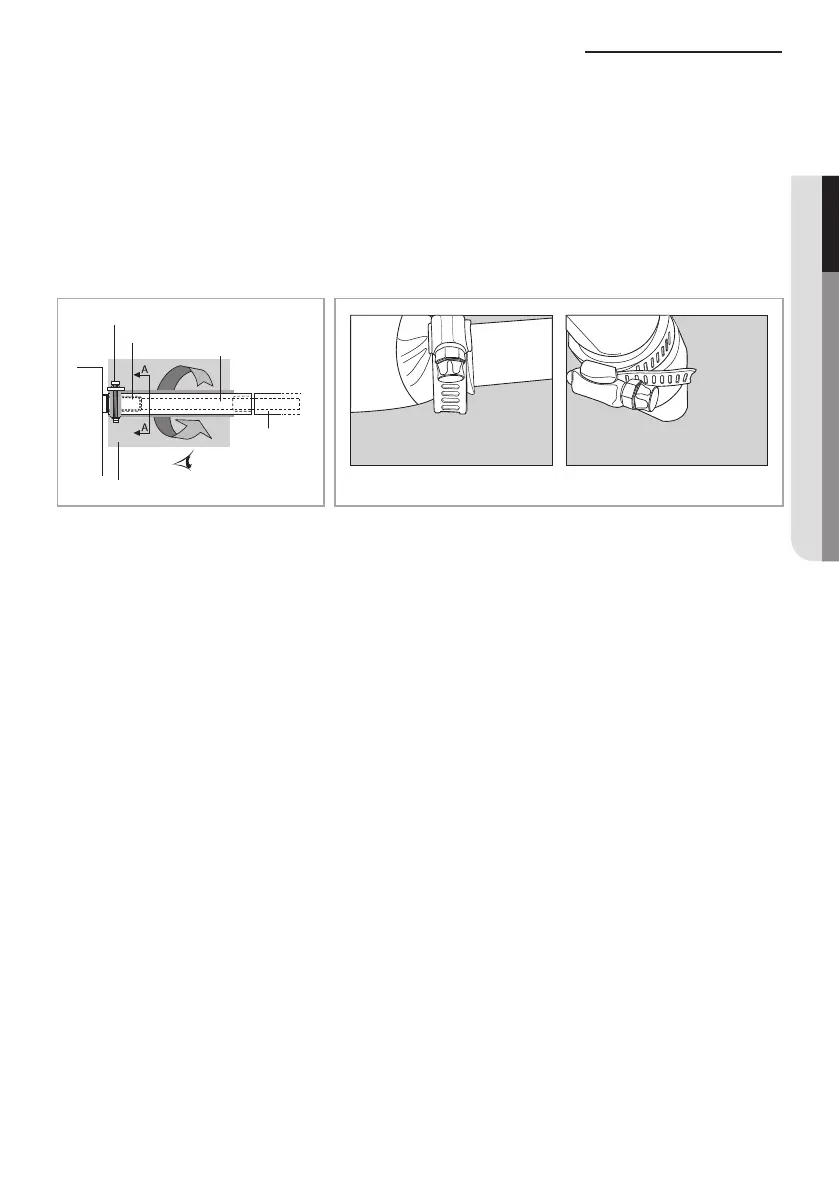

Drain pipe and drain hose installation
Care must be taken when installing the drainpipe and drain hose for the indoor unit so that condensate water is
drained correctly.
Fix the flexible hose to the drainpipe.
Push the supplied drain hose as far as possible over the drain socket.
Tighten the metal clamp as shown in the picture.
Wrap the supplied large insulating pad over the drain hose and metal clamp and fix it with straps.
Insulate the complete drain piping inside the building (field supplied). If the drain hose cannot be sufficiently
sloped, fit the hose with pipe hangers (field supplied).
Push the drain hose up to insulation when connecting the drain hose to drain socket.
A-A’
Drain socket
Drain piping
Drain hose
Metal clamp
Large insulation pad
Tighten the clamp to the maximum until you can see eight holes.
