Samsung AC030JXSCCH - Wiring Work

43
ENGLISH
Wiring work

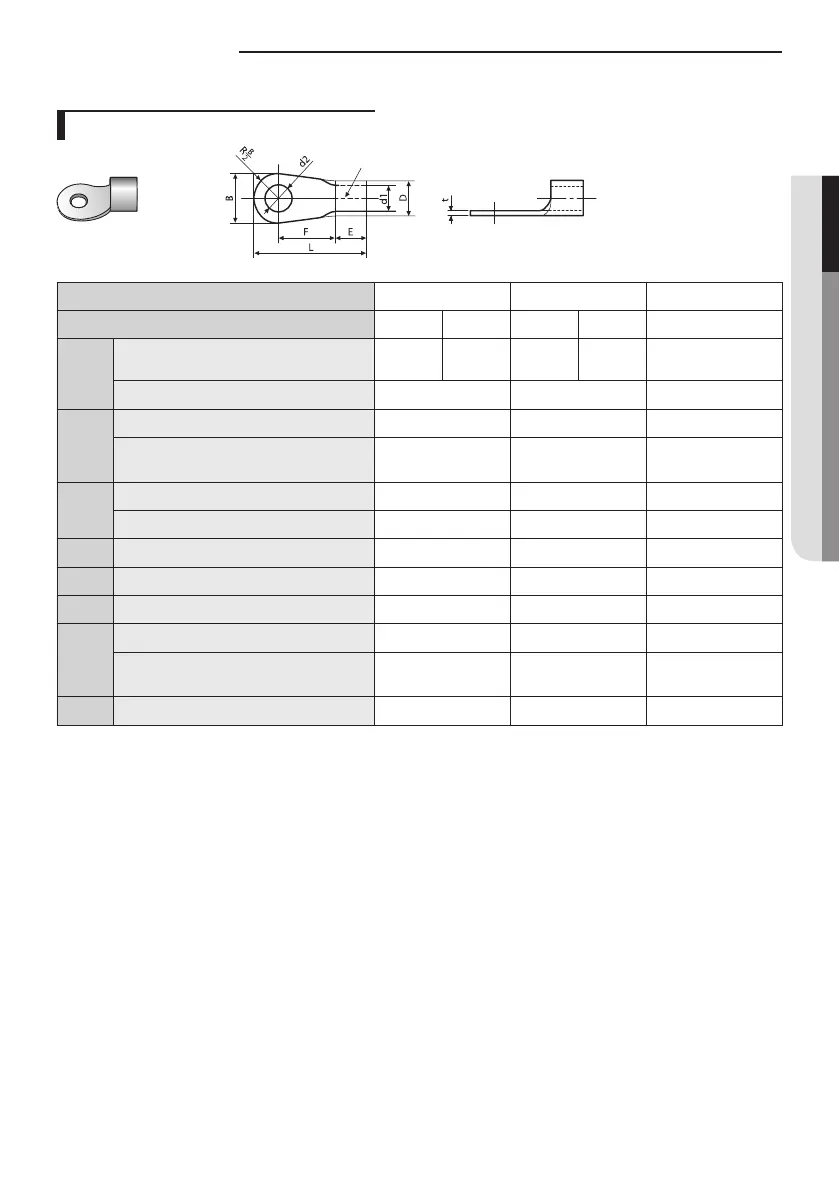

Selecting compressed ring terminal
Silver solder
Norminal dimensions for cable [mm
2
(inch
2
)] 1.5 (0.002) 2.5 (0.003) 4 (0.006)
Norminal dimensions for screw [mm (inch)] 4 (0.15”) 4 (0.15”) 4 (0.15”) 4 (0.15”) 4 (0.15”)
B
Standard dimension [mm (inch)]
6.6
(0.25”)
8.0
(0.31”)
6.6
(0.25”)
8.5
(0.33”)
9.5 (0.37”)
Allowance [mm (inch)] ±0.2 (±0.007”) ±0.2 (±0.007”) ±0.2 (±0.007”)
D
Standard dimension [mm (inch)] 3.4 (0.13”) 4.2 (0.16”) 5.6 (0.22”)
Allowance [mm (inch)]
+0.3 (+0.011”)
-0.2 (-0.007”)
+0.3 (+0.011”)
-0.2 (-0.007”)
+0.3 (+0.011”)
-0.2 (-0.007”)
d1
Standard dimension [mm (inch)] 1.7 (0.06”) 2.3 (0.09”) 3.4 (0.13”)
Allowance [mm(inch)] ±0.2 (±0.007”) ±0.2 (±0.007”) ±0.2 (±0.007”)
E Min. [mm (inch)] 4.1 (3/16”) 6 (1/4”) 6 (1/4”)
F Min. [mm (inch)] 6 (1/4”) 6 (1/4”) 6 (1/4”)
L Max. [mm (inch)] 16 (5/8”) 17.5 (3/4”) 20 (3/4”)
d2
Standard dimension [mm (inch)] 4.3 (0.16”) 4.3 (0.16”) 4.3 (0.16”)
Allowance [mm (inch)]
+0.2 (+0.007”)
0 (0”)
+0.2 (+0.007”)
0 (0”)
+0.2 (+0.007”)
0 (0”)
t Min. [mm (inch)] 0.7 (0.02”) 0.8 (0.03”) 0.9 (0.035”)
