Setting indoor unit installation options
Set the indoor unit installation option with remote controller.
The procedure of option setting

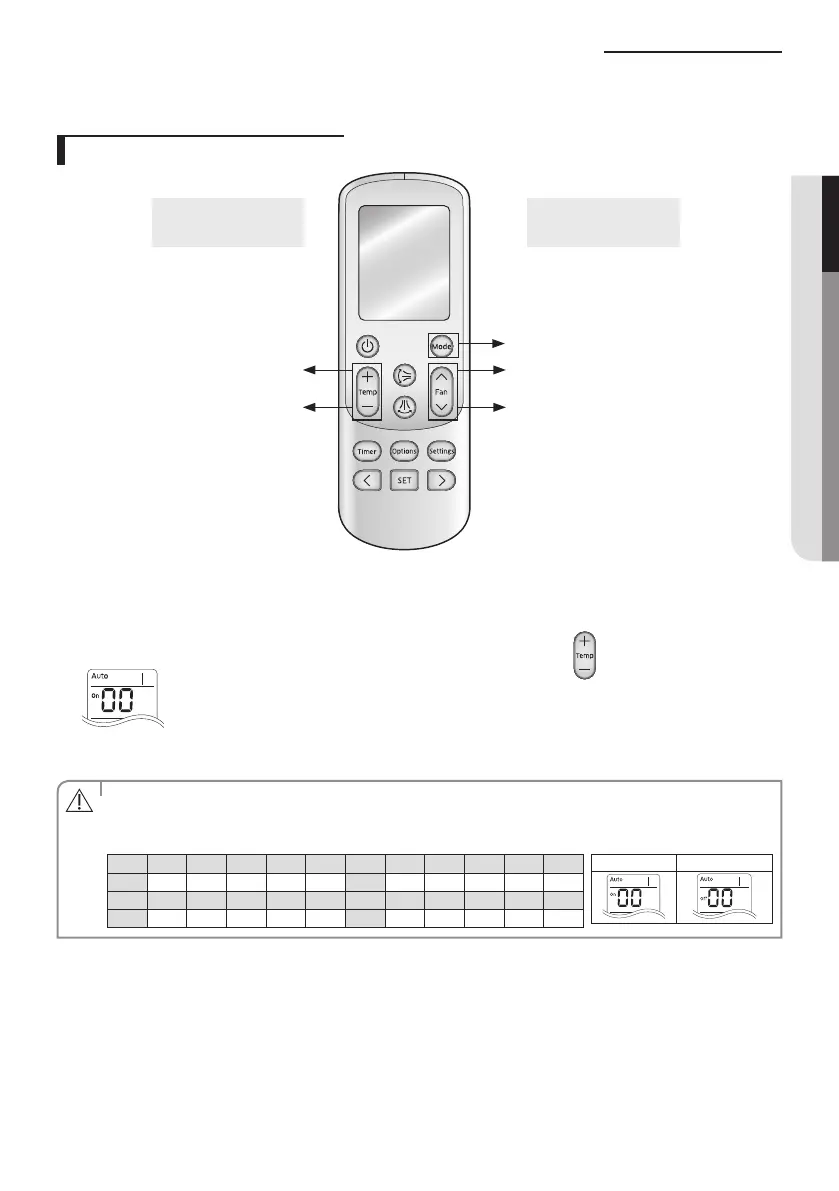

High Temp Button
High Fan Button
Mode change
Low Temp Button Low Fan Button
Entering mode for
setting option
Option setting mode
Step 1. Entering option setting mode (service mode)
1. Remove batteries from the remote controller.
2. While holding the Temp+ and Temp- buttons, insert batteries into the controller.
3. Check if you have entered the option setting status. The display should show “Auto”, “On”, and “00”.
Step 2. The procedure of option setting
After entering the option setting status, select the option as listed below.
Option setting is available from SEG1 to SEG 24
• SEG1, SEG7, SEG13, SEG19 are not set as page option.
• Each SEG changes a different option. Setting details will follow.
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0 X X X X X 1 X X X X X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
2 X X X X X 3 X X X X X
CAUTION
On(SEG1~12) Off(SEG13~24)
