42

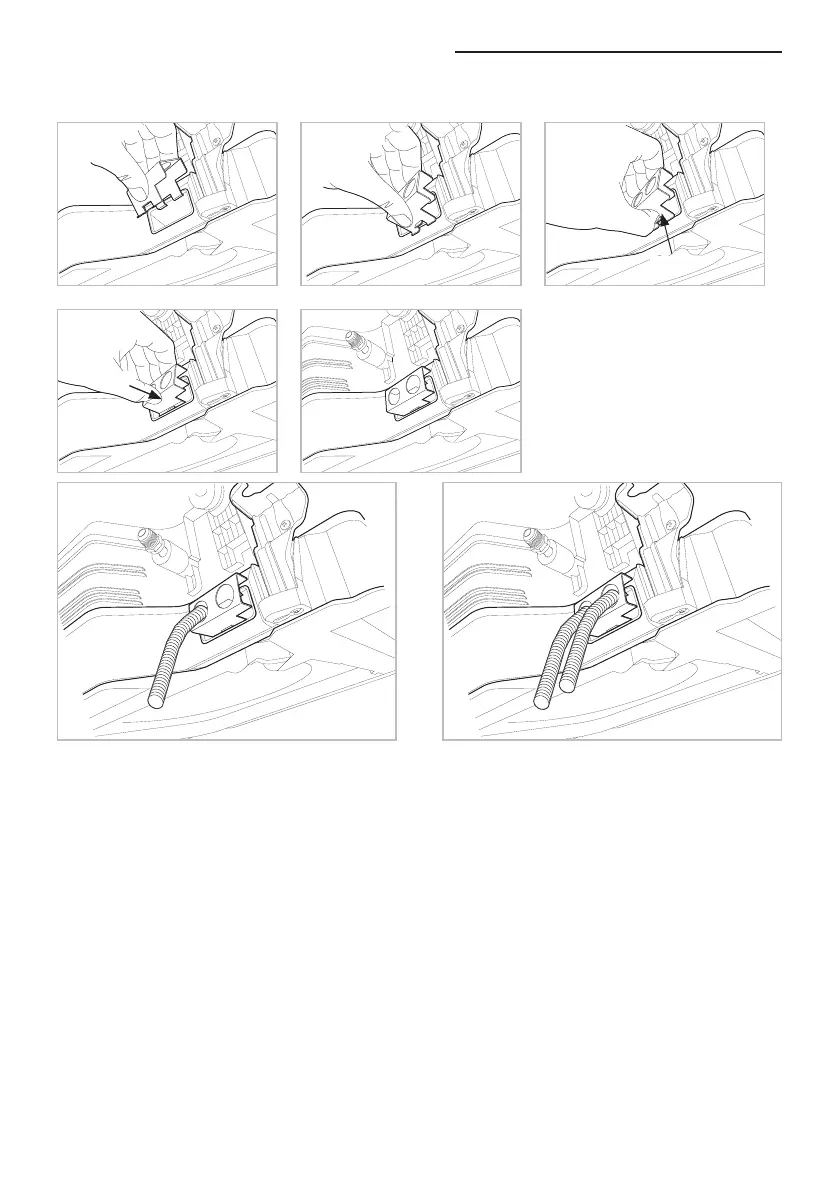

Bushing bracket installation
If the conduit tube is used, bushing bracket must be installed as shown in the picture to fix the conduit tube.
1
2 3
Push
54
Click
1 conduit tube
2 conduit tubes
