Disassembly and Reassembly
3-74 Samsung Electronics

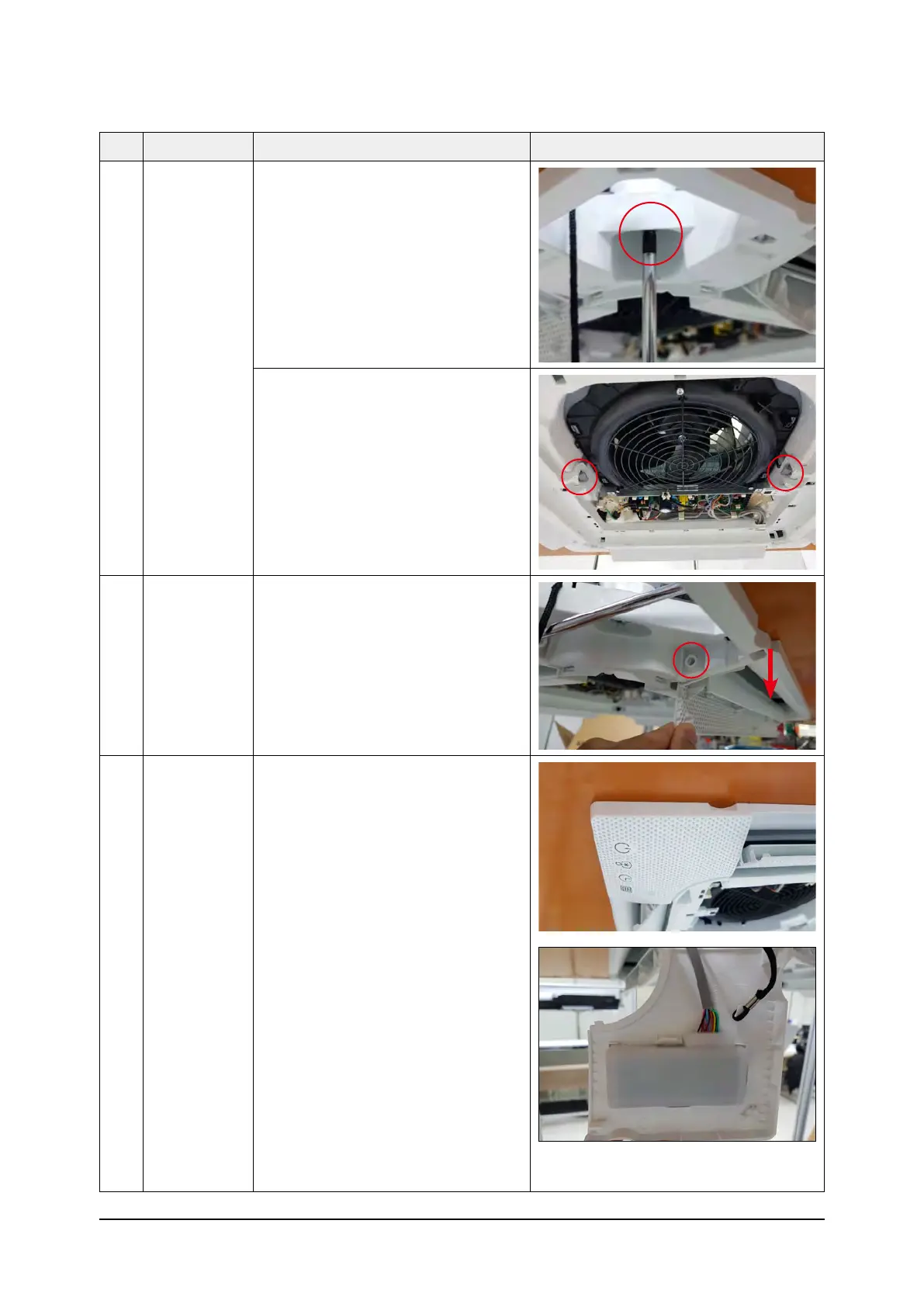

No Parts Procedure Remark
6) Disassemble the bolts that are
assembled with the indoor unit at the
4 panel corners.
7) Press the Hangers at both sides of the
panel inwards, to remove it from the
indoor unit’s hook.
Remove the panel from the indoor unit.
2 Blade 1) Remove the hinge-blade and blade.
3 Display PBA 1) Remove the cover display.
2) Remove the cover PBA from the cover
display.
