Disassembly and Reassembly
Samsung Electronics 3-85
No Parts Procedure Remark

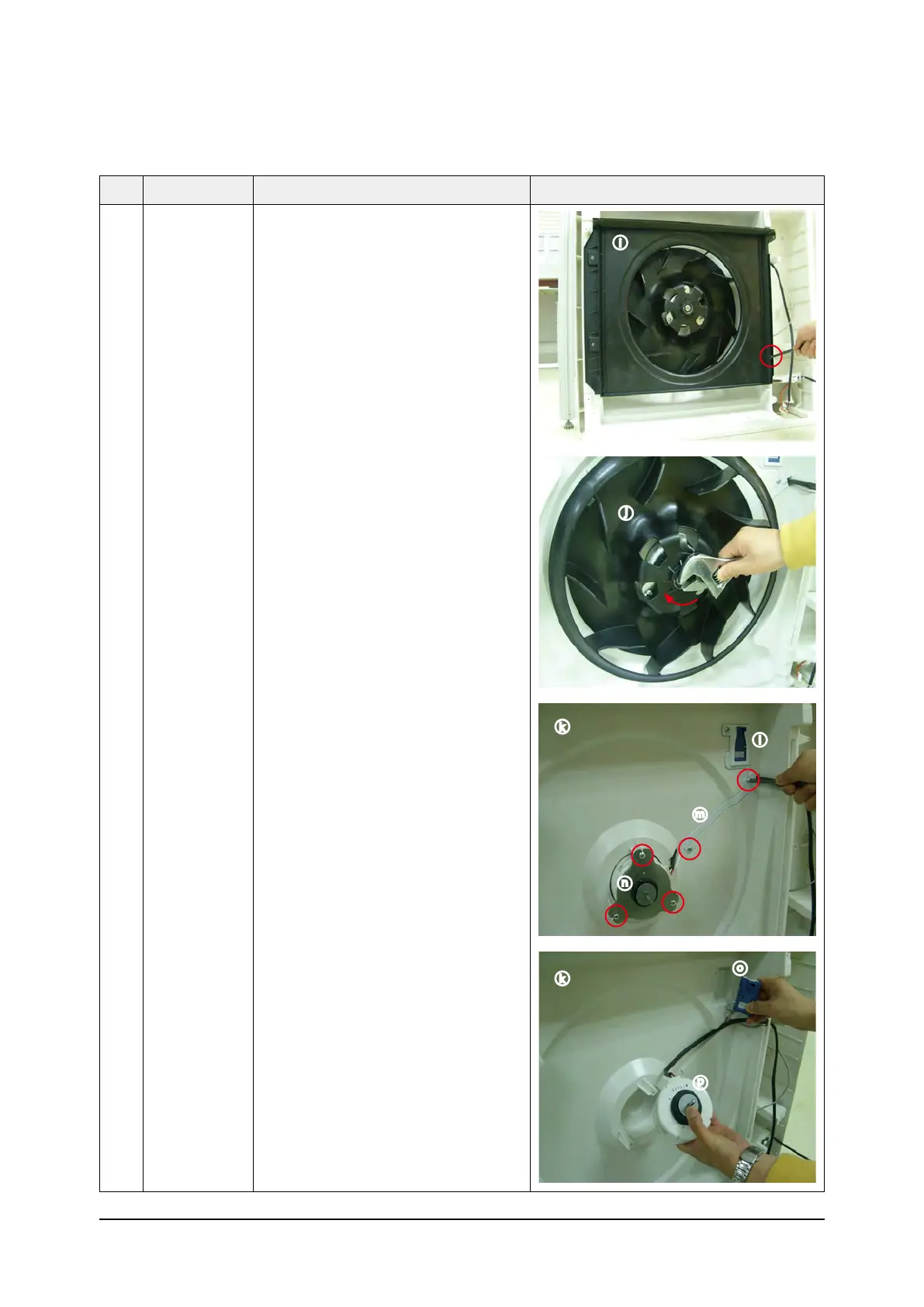

4 Fan Part 1) Release 1 screw and pull the Bell
Mouth (
ⓘ
) out.
2) Release the Nut and pull Fan Turbo(
ⓙ
)
out.
3)
Release 6 screw on the Body Back(
ⓚ
).
Pull the Cap VIRUS DOCTOR(
ⓛ
), Bracket
Wire(
ⓜ
) and Bracket Motor(
ⓝ
) out.
4) Pull the VIRUS DOCTOR Kit(
ⓞ
) and
Motor(
ⓟ
) out from the Body Back(
ⓚ
).
ⓘ
ⓙ
ⓚ
ⓛ
ⓜ
ⓝ
ⓚ
ⓞ
ⓟ
