Disassembly and Reassembly
3-98 Samsung Electronics

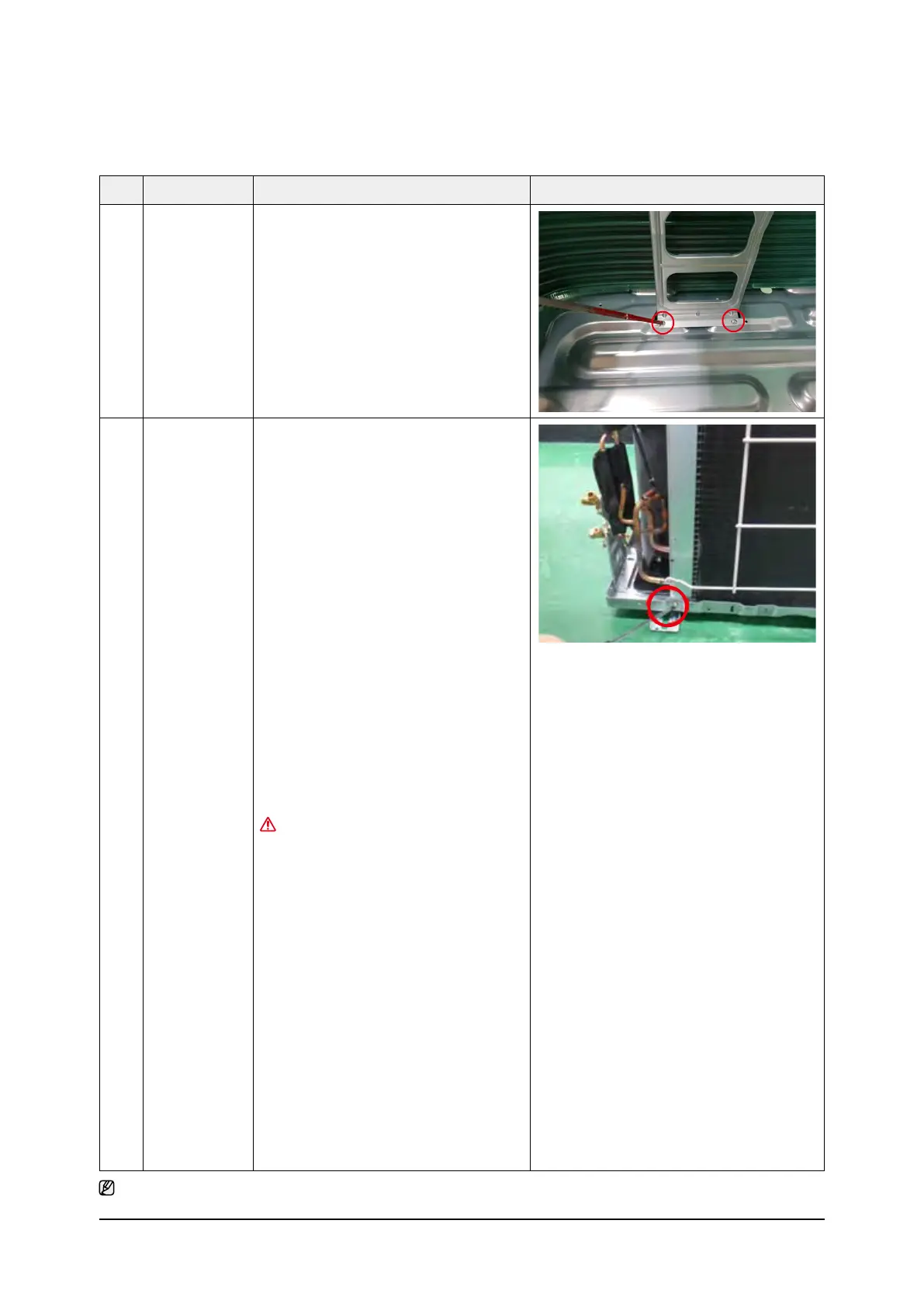

No Parts Procedure Remark
8 Ass’y bracket
Motor
1) Unscrew and remove 2 screws on to
take apart Bracket Motor.
(Use + Screw Driver)
9 Heat
Exchanger
1) Purge the Refrigerant first.
2) Unscrew the fix screw.
3) Separate the pipe from the Entrance
and Exist by using a welder.
4) Separate Heat Exchanger from Unit.
When removing the Compressor,
Heat Exchanger, and Pipe, Purge the
Refrigerant inside the Compressor
completely and remove the pipe with
a weld-ing flame.
Reassembly procedures are in the reverse order of dissasembly procedures.
