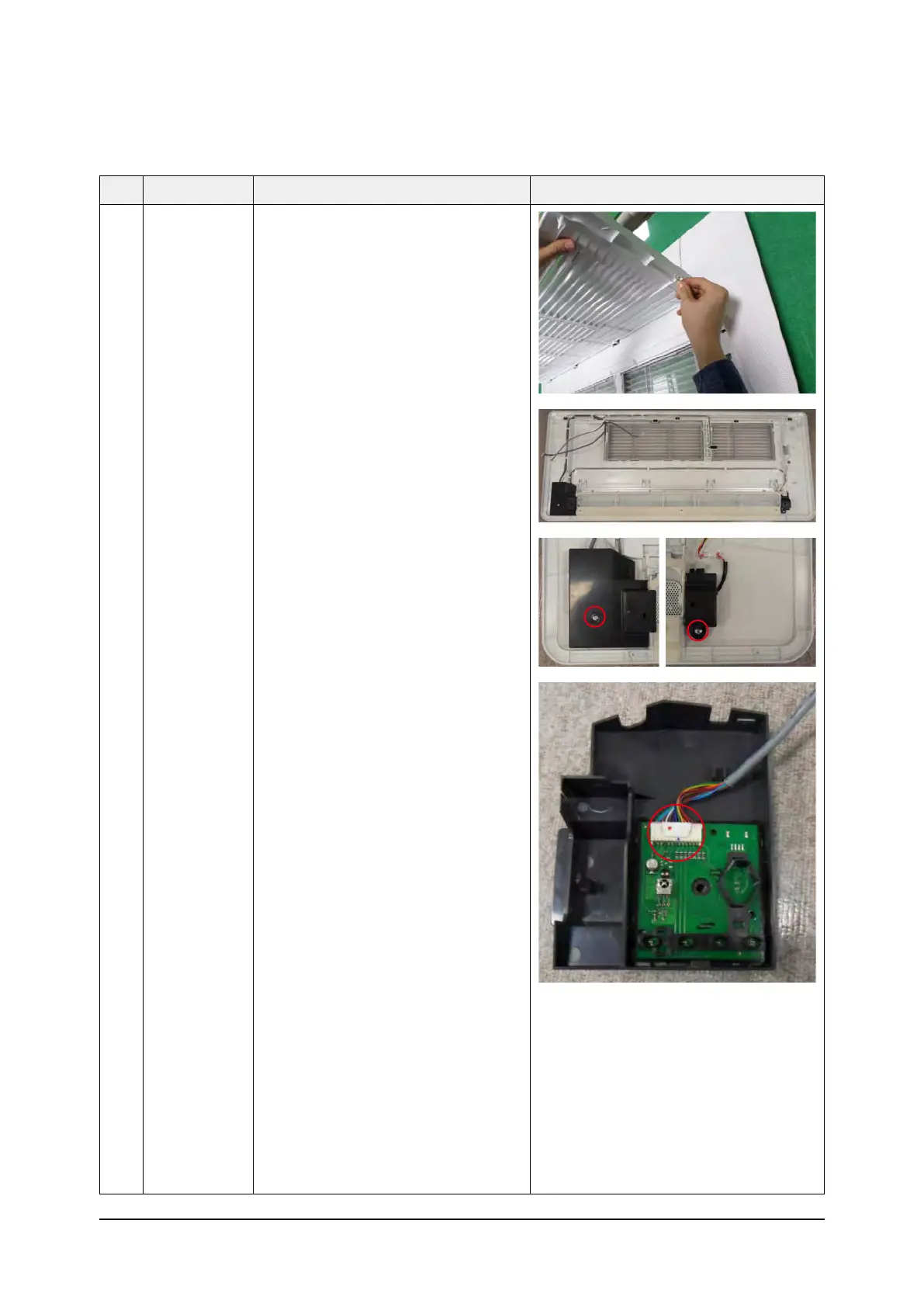

Disassembly and Reassembly
Samsung Electronics 3-3
No Parts Procedure Remark
1 PANEL And
FILTER
(Continues)
6) Open the GRILLE and then separate
the CLIP WIRE.
7) Remove the screws fixed in COVER
DISPLAY, COVER MOTOR RIGHT and
then remove the COVER DISPLAY,
COVER MOTOR RIGHT.
(Use +Screw Driver)
8) Disconnect the connector.
(Remote control receiver PBA and
Display PBA)
