Disassembly and Reassembly
3-4 Samsung Electronics
No Parts Procedure Remark
1 PANEL And
FILTER
(Continues)

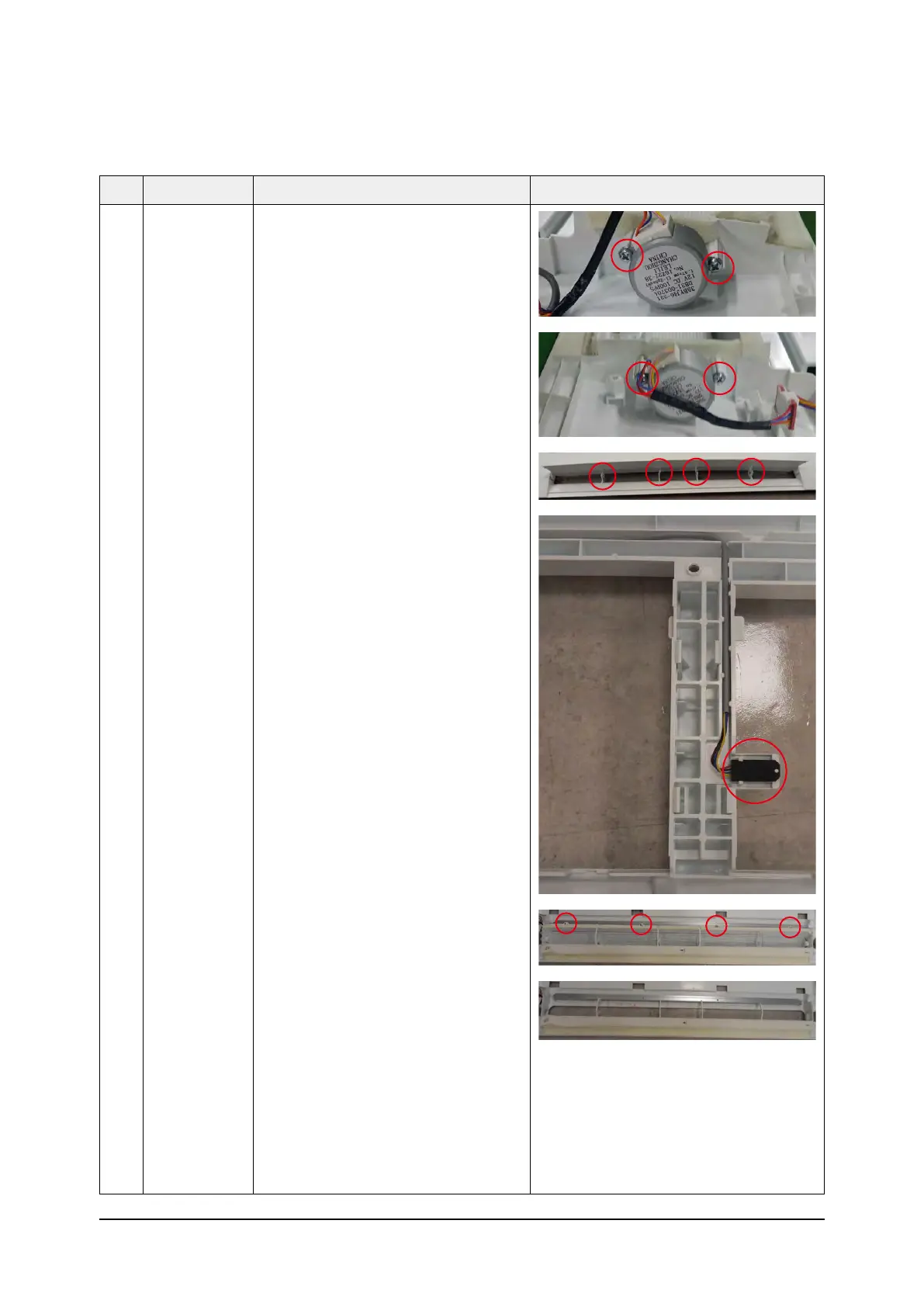

9) Remove the 4 screws fixed in STEP
MOTOR and then remove the MOTOR.
(Use +Screw Driver)
10) Remove the 4 HINGE and then
separate the BLADE H.
11) Separate the SENSOR HUMIDITY.
12) Remove the 4 screws fixed in GUIDE
AIR and then remove the GUIDE AIR.
(Use +Screw Driver)
13) Separate the PLATE.
