Disassembly and Reassembly
3-8 Samsung Electronics
No Parts Procedure Remark

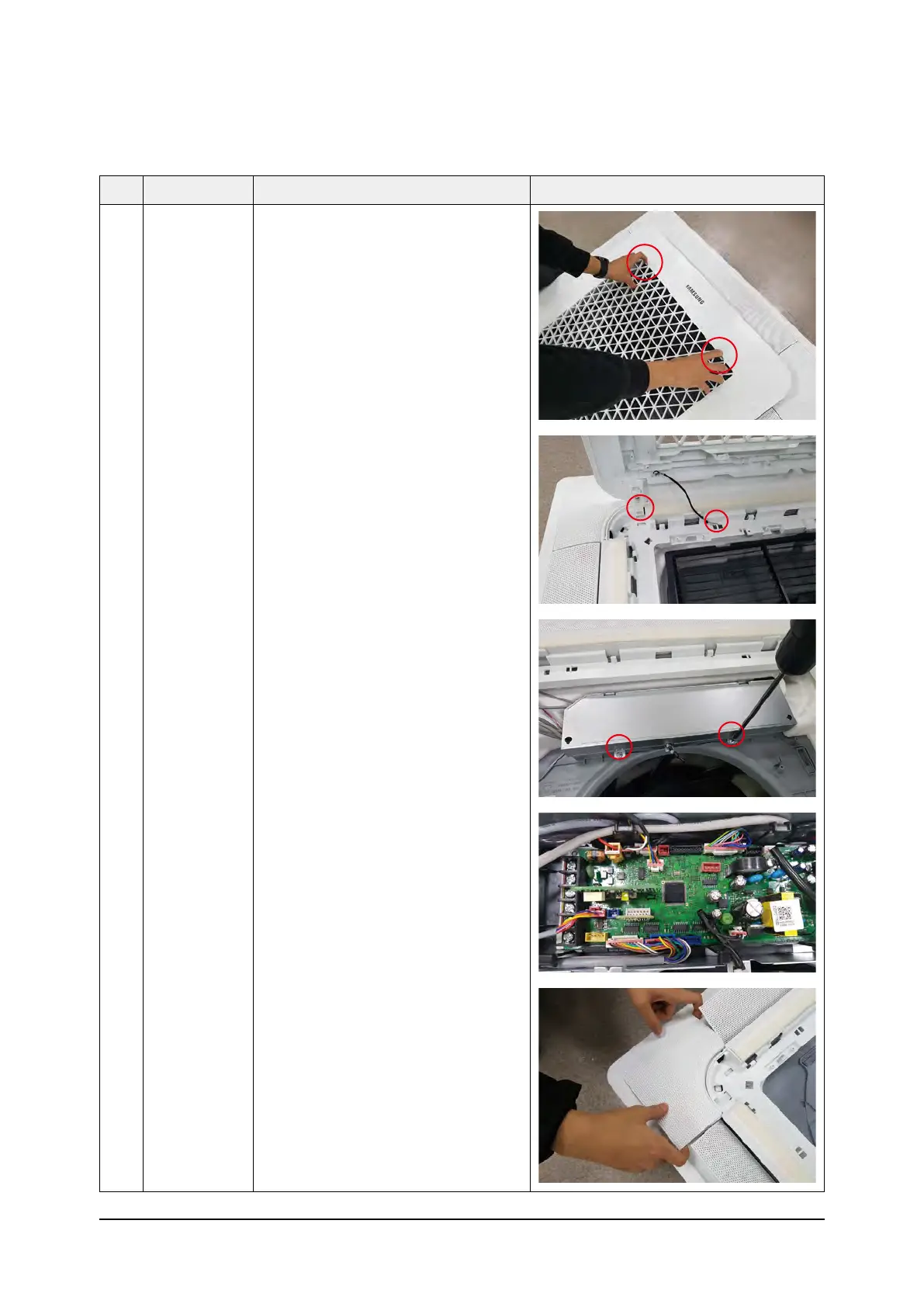

1 Panel 1) Pull two levers below Samsung logo to
open the grille.
2) Detach the safety clip and white link
from the panel.
3) Remove the 2 fixed screws to remove
the Control-B ox Cover.
(Use +Screw Driver)
4) Remove the 4 connector wires from
the PBA. (Remocon-Receiver, Blade
motor and Humidity sensor)
5) Detach the 4 corners of the panel
using both hands..
■AC052RN4DKG/AC071RN4DKG/AC100RN4DKG/AC120RN4DKG/AC140RN4DKG
