Disassembly and Reassembly
Samsung Electronics 3-9
No Parts Procedure Remark

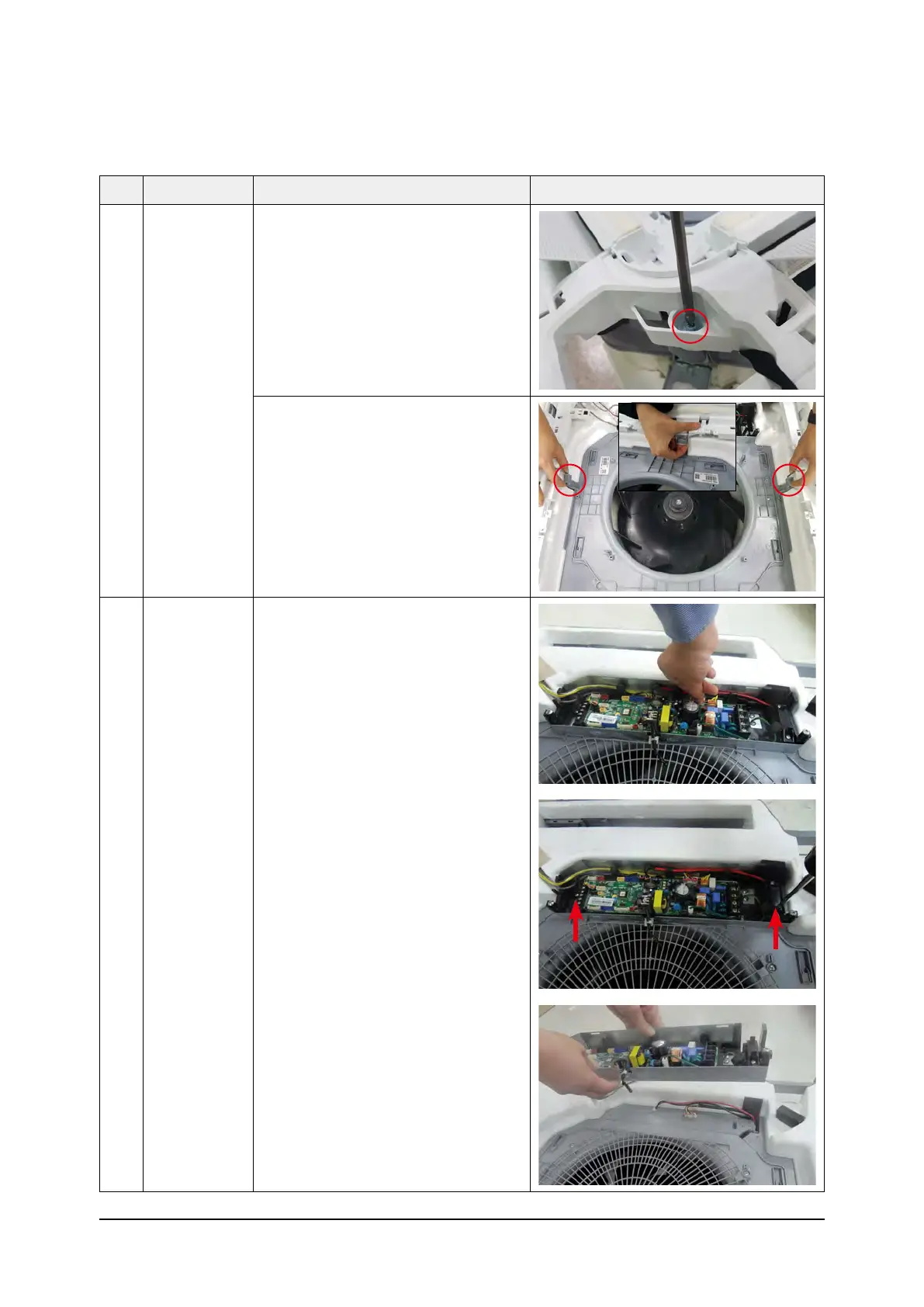

1 Panel 6) Disassemble the bolts that are
assembled with the indoor unit at the
4 panel corners.
7) Press the Steel Hangers at both sides
of the panel inwards, and rotate them
90 degrees to remove it from the
indoor unit’s Hock. Remove the panel
from the indoor unit.
2 Control-Box 1) Disconnect the Connector Wire that
is connected to the indoor unit’s PBA
from the PBA.
2) Unscrew the 2 fixed screws on both
sides of the Control Box, and
disassemble the Control Box from the
indoor unit.
(Use +Screw Driver)
