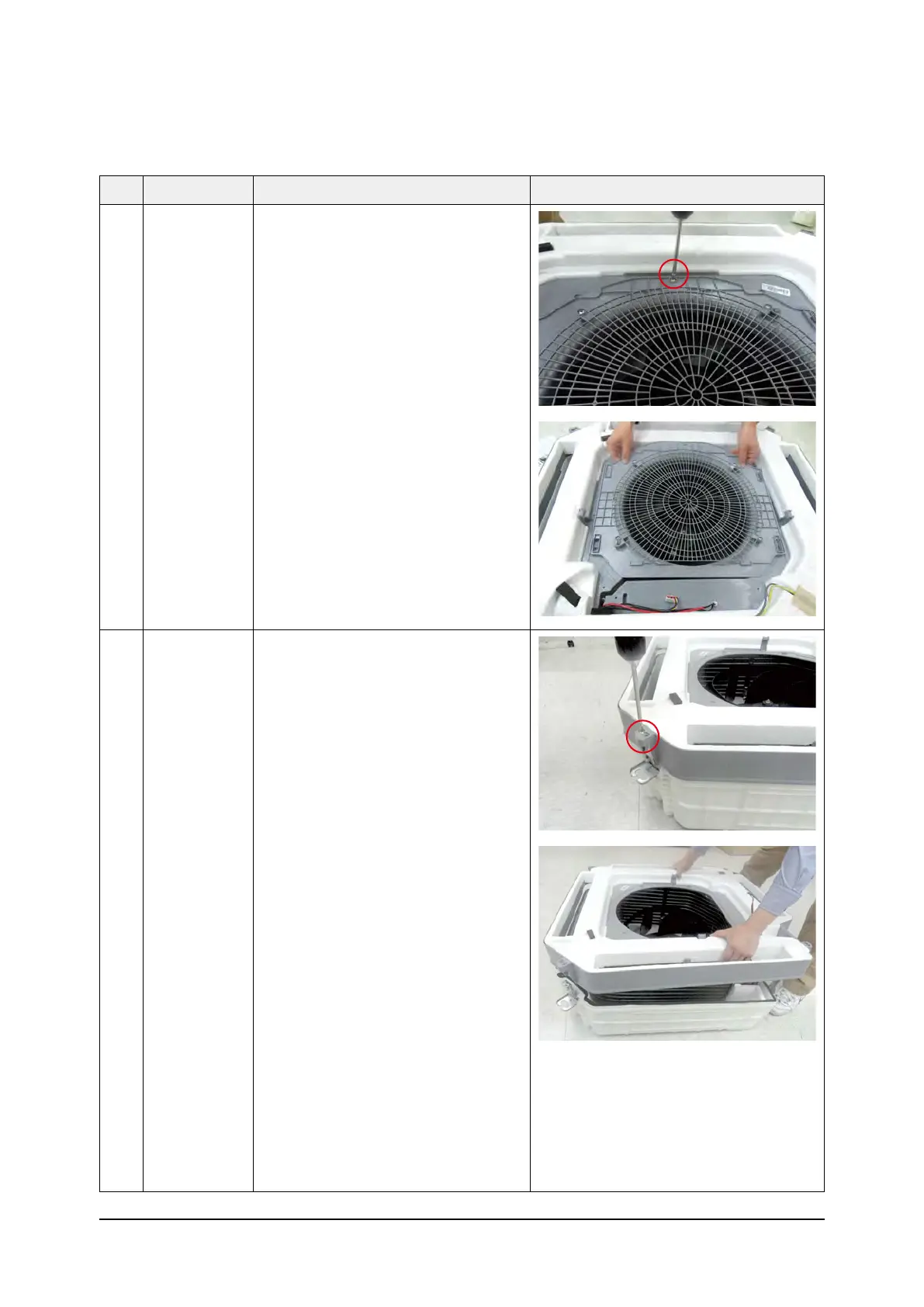

Disassembly and Reassembly
3-10 Samsung Electronics
No Parts Procedure Remark
3 Bell-Mouth 1) Unscrew the screw fixed on the Bell-
Mouth.
(Use +Screw Driver)
2) Push the Bell-Mouth in the direction
opposite to where it’s installed on the
Control-Box to remove it.
4 Drain Pan 1) Unscrew the screws on the 4 corners of
the indoor unit.
(Use +Screw Driver)
2)
Remove the Drain Pan from the indoor unit.
