Disassembly and Reassembly
3-44 Samsung Electronics
■AC100RNTDKG/EU
No Parts Procedure Remark

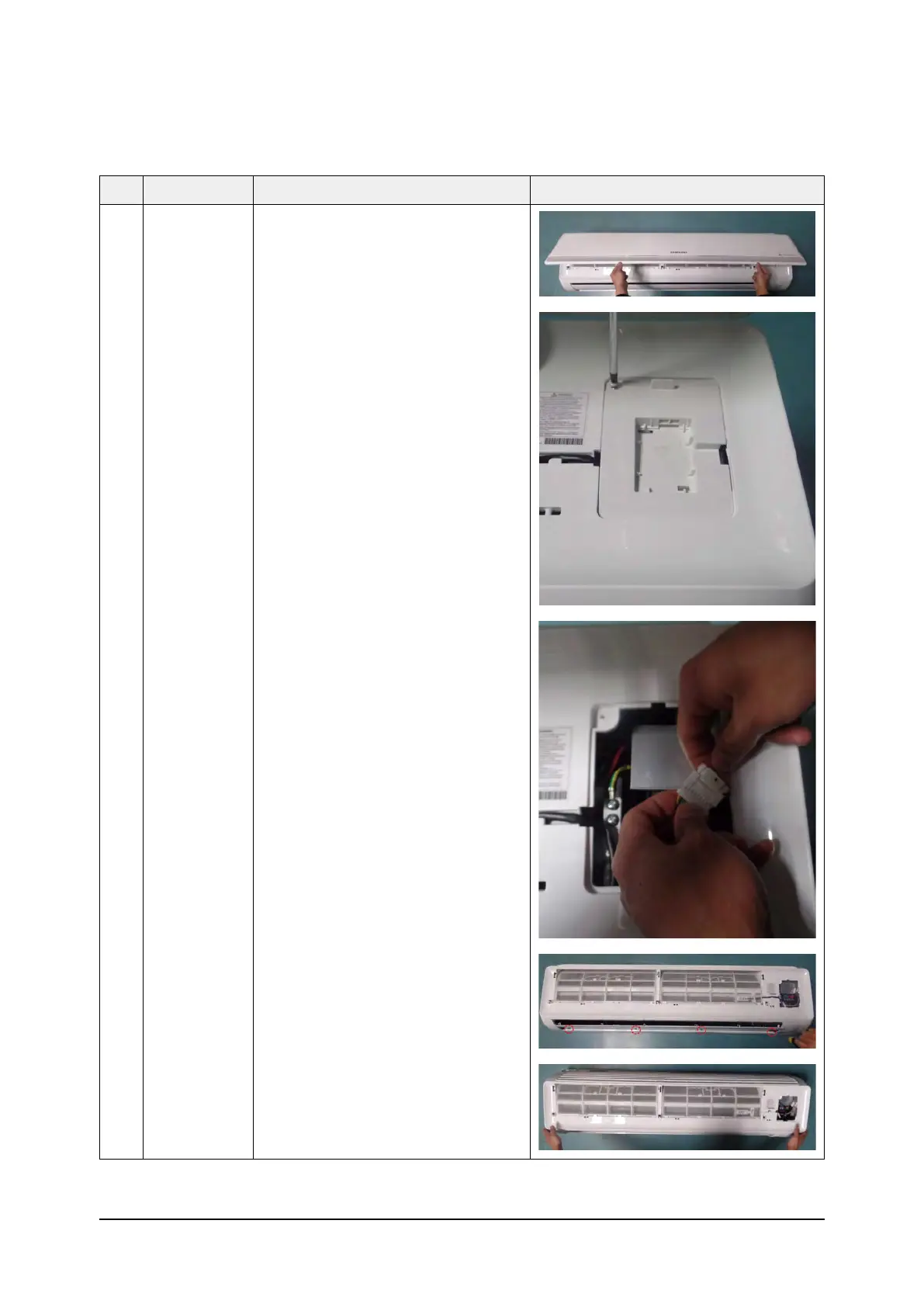

1 Panel-Front 1) Stop the driving of air conditioner and
shut off main power supply.
2) Open the FRONT-GRILLE and pull out
from the PANEL-FRONT.
3) Detach COVER-TERMINAL from the
PANEL FRONT. (use + Screw Driver)
4) Loosen connector wire(white) and
detach the temperature sensor wire.
5) To detach the FRONT-PANELthe main
frame, unfasten 2 screw at the bottom.
(use + Screw Driver )
6) Take off the FRONT-PANEL,lifting up
the bottom
To Next Page
