Disassembly and Reassembly
3-16 Samsung Electronics

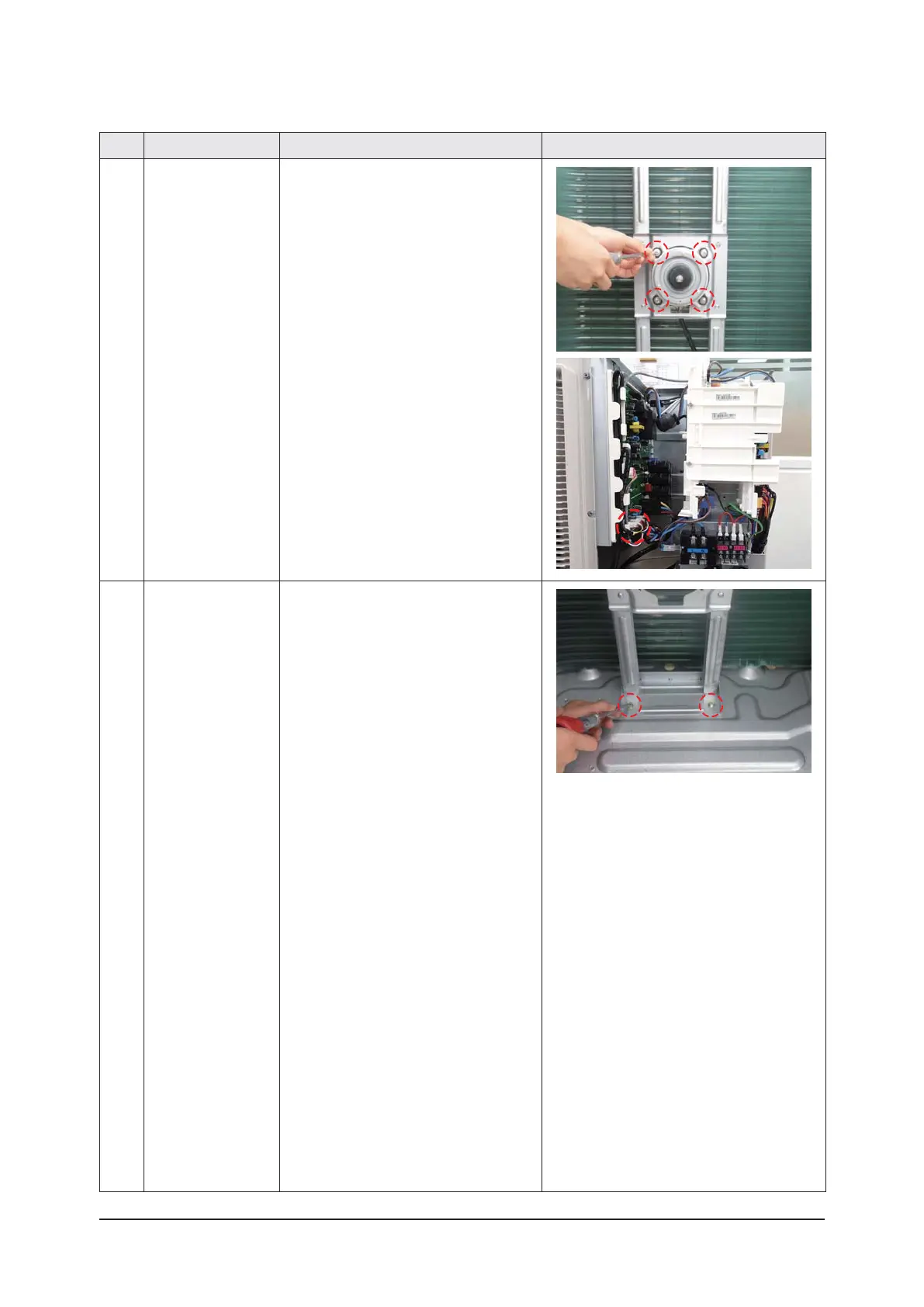

No Parts Procedure Remark
9 Motor 1) Separate the Fan Propeller.
2) Remove the 8 screws which is fixed to
Motor. ( Use + Screw Driver )
3) Separate the Motor Wire connector from
the Outdoor Unit Control Part.
10 Bracket Motor 1) Remove the 2 screws from the Bracket
Motor and separate it.
(Use + Screw Driver)
To Next Page
