Samsung AJ024TXJ3CH - 3-1 Outdoor Unit; 3-1-1 AJ020 TXJ3 CH, AJ024 TXJ3 CH

Disassembly and Reassembly
3-2 Samsung Electronics
3-1 Outdoor Unit

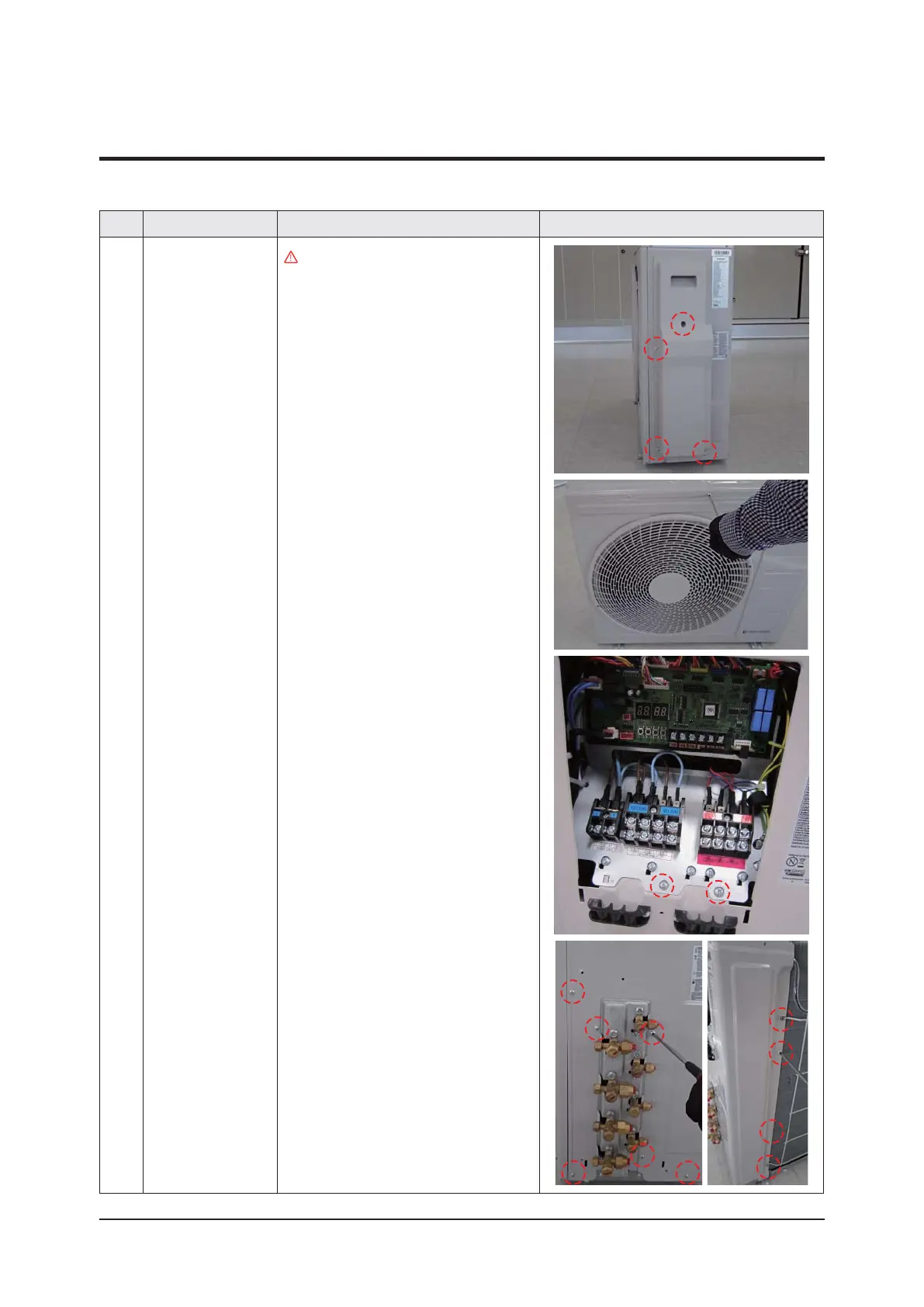

No Parts Procedure Remark
1 Common Work
&
Control Out
You must turn off the Power before
disassembly.
1) Loosen 4 fixing screws(CCW) of the Cover-
Valve. (Use +Screw Driver).
2) Loosen each 9 screws(CCW) on Cabi-Top.
(Use +Screw Driver).
3) Loosen 2 screws(CCW) fixed to assemble
Plate Control Out with Cabinet-Side RH.
(Use +Screw Driver.)
4) Loosen 10 fixing screws(CCW) on Cabinet-
Side RH. (Use +Screw Driver.)
3-1-1 AJ020TXJ3CH, AJ024TXJ3CH
