PCB Diagram
5-14 Samsung Electronics

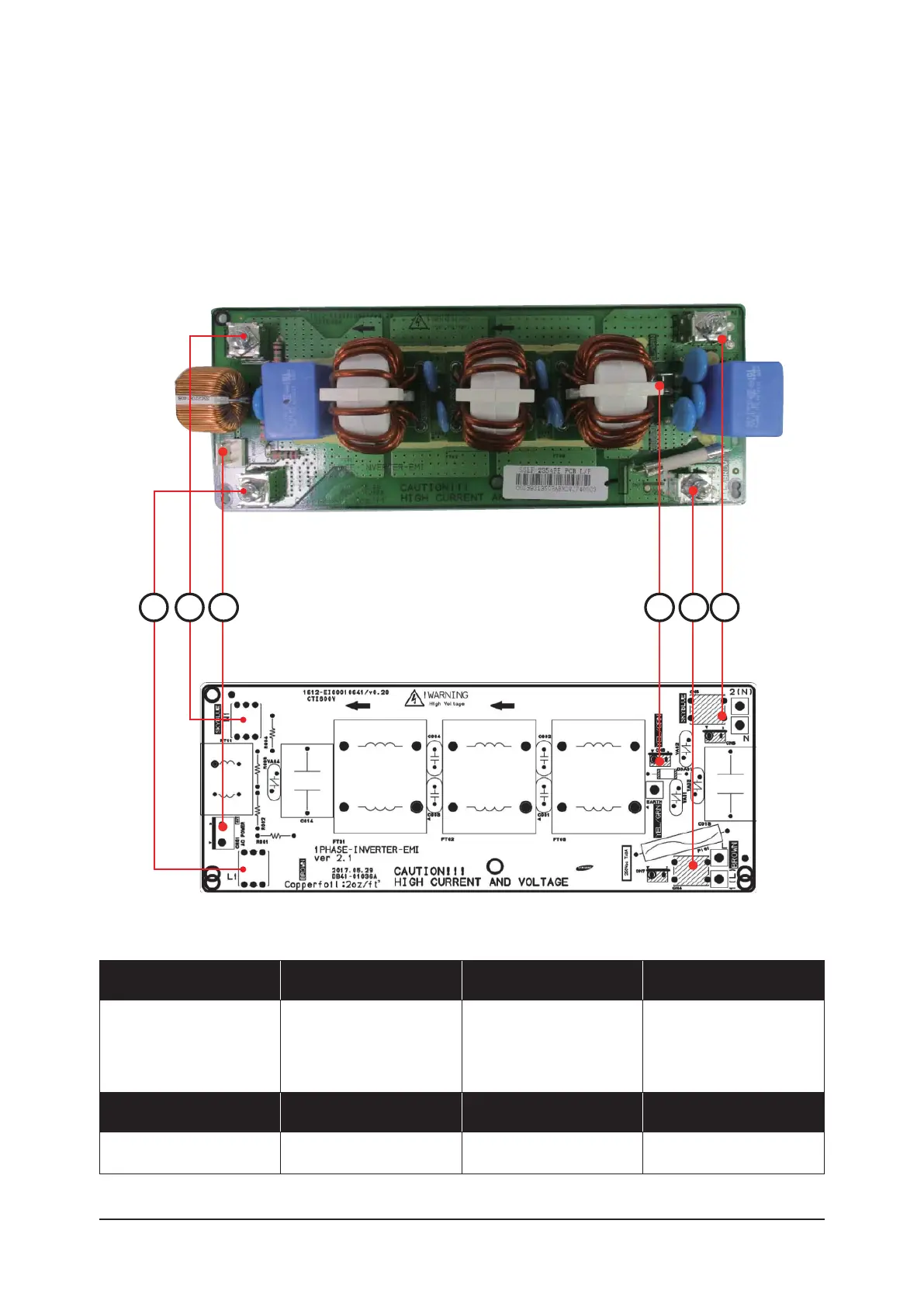

AJ020TXS3CH, AJ***TX*4CH, AJ***TX*5CH (MAIN PBA)
- This Document can not be used without Samsung’s authorization.
3 5 64
1. L1 - AC POWER OUTPUT 2. L2 - AC POWER OUTPUT 3. CN01 - AC POWER OUTPUT 4. EARTH
#1 : L - RELAY CONTACT
OUTPUT
#1 : N - NEUTRAL POWER
OUTPUT
#1 : L - RELAY CONTACT
OUTPUT
#2 : -
ࢄߤࡠĘࣗĘkƸƟŵøťĮǮkŵ
OUTPUT
#1 : EARTH
5. L, 1(L) - AC POWER INPUT 6. N, 2(N) - AC POWER INPUT
ࢄߢࡠøࣗøÃǤkťĮǮkŵÃĘťƸƟ #1 : N - NEUTRAL POWER
INPUT
1 2
