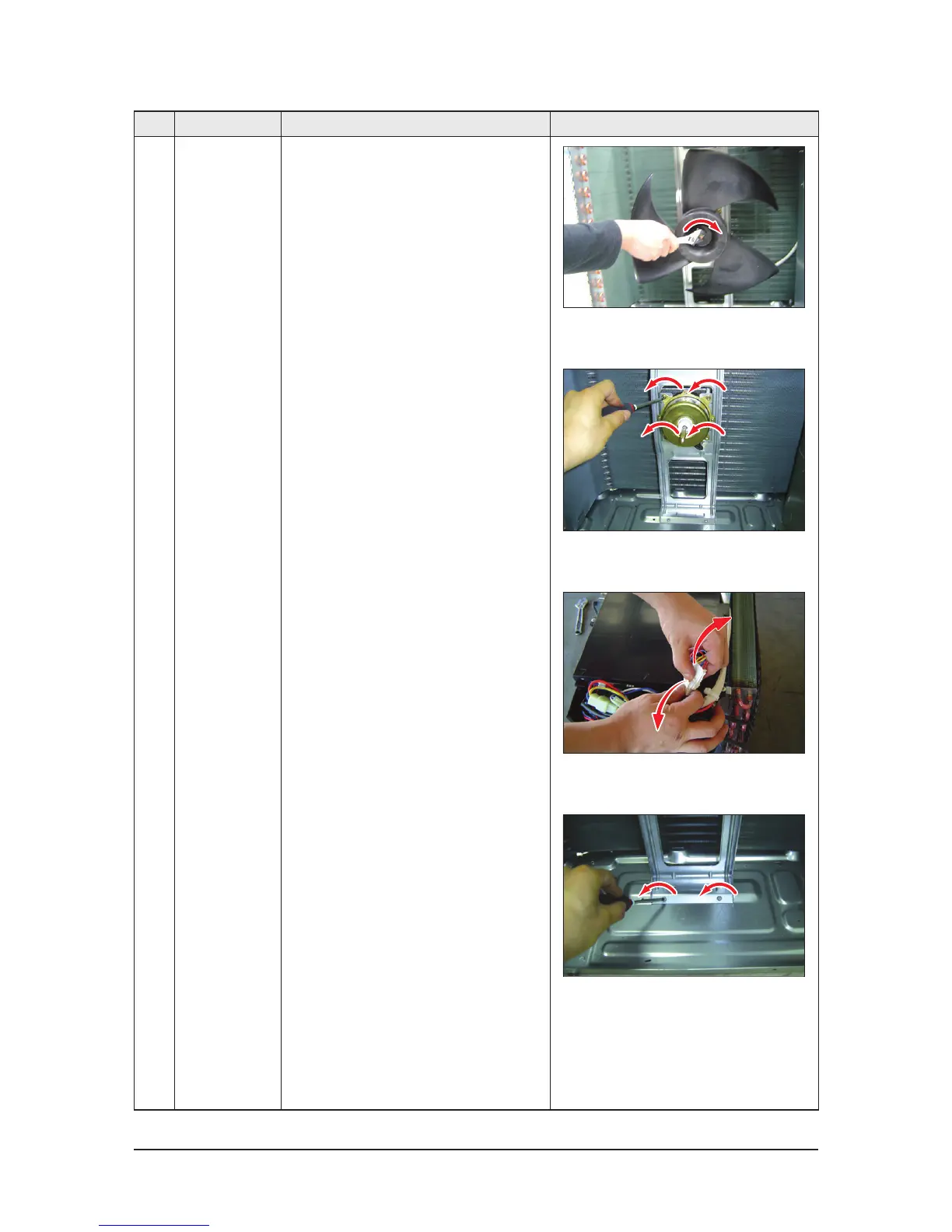

Disassembly and Reassembly
No Parts Procedure Remark
2 Fan
&
Motor
1) Detach the Nut Flange like the picture on
the right side. (Turn clockwise because the
screw is left-handed.)
2) Detach the Fan Propeller.
3) Loosen 4 fixing screws(CCW) to detach
the Motor.
4) Disconnect the wire between Ass’y Control
Out and Motor.
5) Loosen 2 fixing screws(CCW) and detach the
Bracket Motor.
To Next Page
