4-10 Samsung Electronics
Disassembly and Reassembly

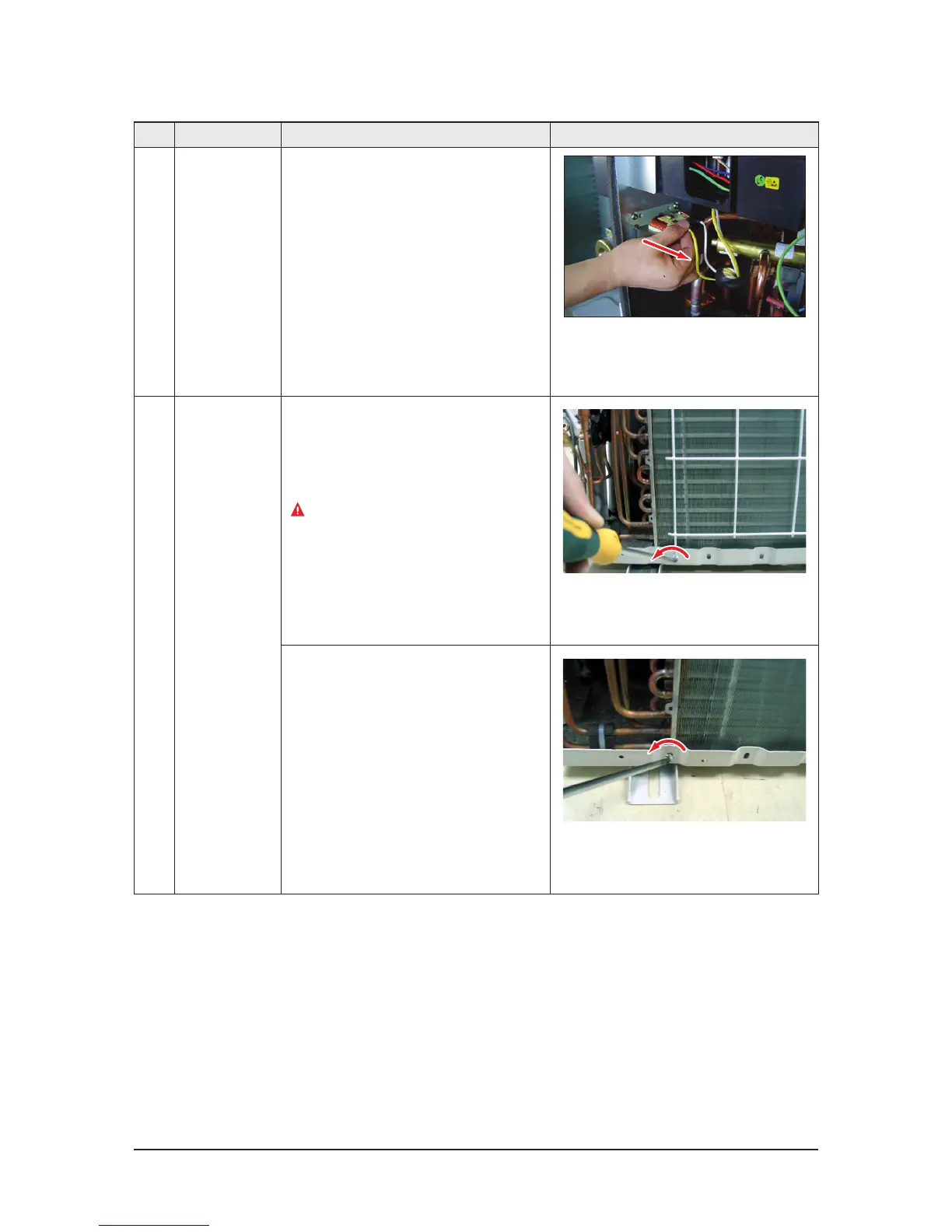

No Parts Procedure Remark
3 Ass’y Control Out 1) Detach several connectors from the
Ass’y Control Out.
2) Detach several connectors from the PCB of
Ass’y Control Out.
3) Pull up the Ass’y Control Out.
4 Heat Exchanger 1) Release the refrigerant at first
2) Loosen fixing screw(CCW) and detach the steel
bar.
3) Disassemble the pipes in both inlet and outlet
with welding torck.
Before you disassemble the pipes and
Condenser, be sure that there should be
no refrigerant remained in the unit.
1) Loosen fixing screw(CCW) and detach the Heat
Exchanger
To Next Page
