Connections
Case 3 : Connecting to a TV with an Audio/Video cable - Good Quality
1. Using an Audio/Video cable, connect the VIDEO OUT (yellow) / AUDIO OUT (white and red)
terminals on the rear of the product to the VIDEO IN (yellow) / AUDIO IN (white and red) terminals
of your TV.
2. Turn on the product and TV.
3. Press the input selector on your TV remote control until the “VIDEO” signal from the product appears
on the TV screen.
• If you have set the product's remote control to operate your TV (See pages 21~22), press the TV
SOURCE button on the remote control and select VIDEO as the external source of the TV.
✎
NOTE
`
Noise may be generated if the audio cable is placed too close to the power cable.
`
If you want to connect to an AV receiver, please refer to the AV receiver connection pages. (See pages 27~28)
`
The number and position of
input terminals
may vary depending on your TV set. Please refer to the user manual of your
TV.
!
CAUTION
`
Do not connect the product to your TV through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.

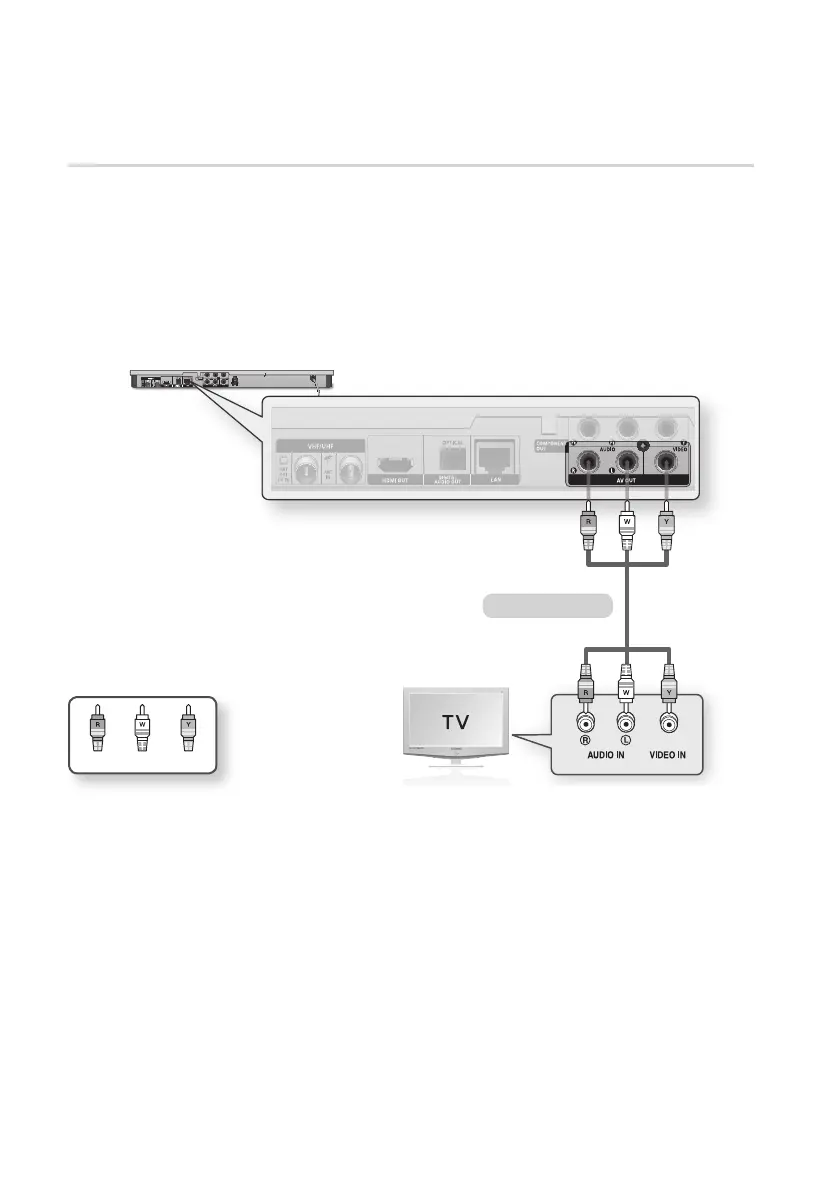

WhiteRed Yellow
Audio/Video cable
