Samsung CL29K5MQ2X - Disassembling the CRT and Chassis

Disassembly & Reassembly
12-2 Samsung Electronics

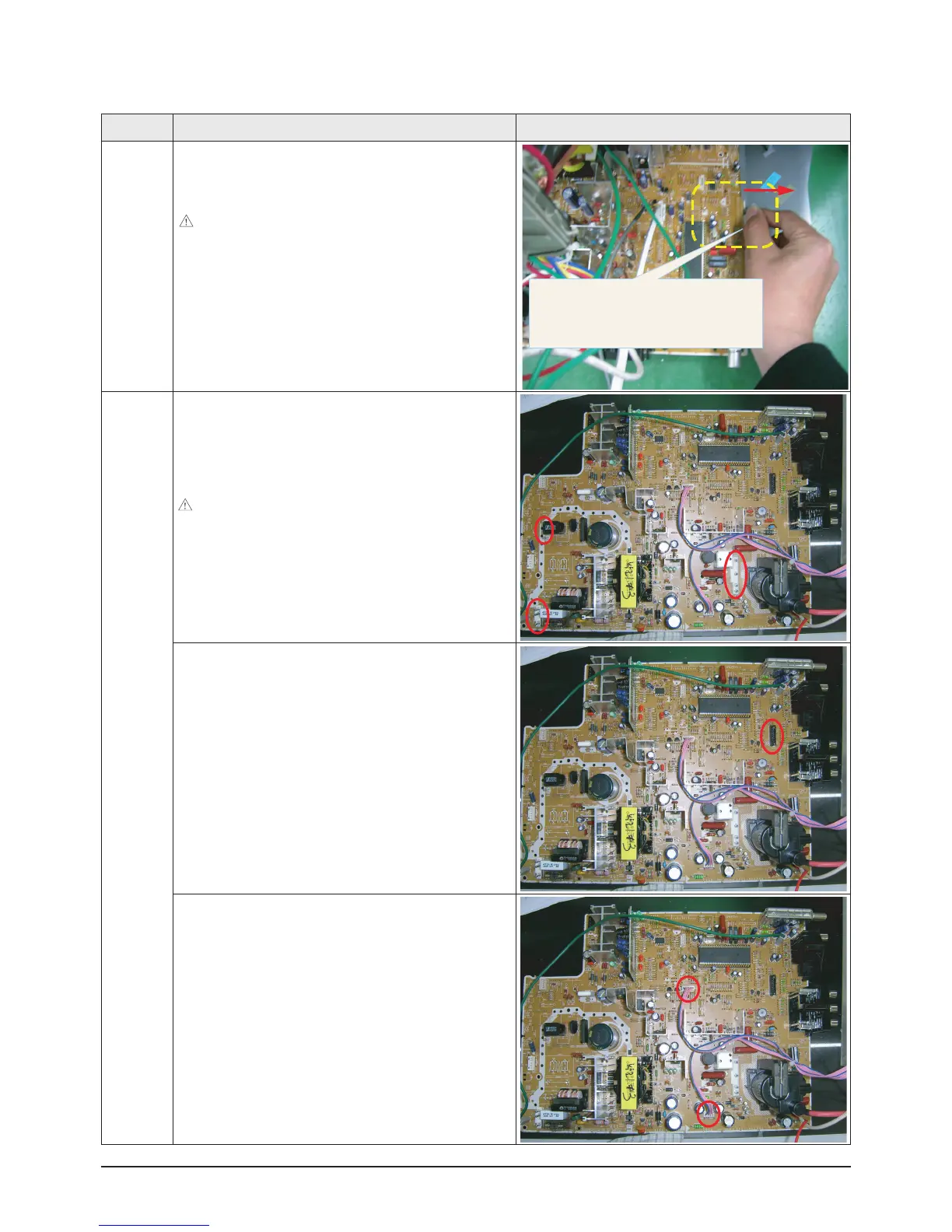

Part Name Description Description Photo
Chassis
Holder
① Separate the Ass'y Holder chassis from the Front Cabinet.
② Pull the Chassis Holder lifting the fixing clip up.
: Pulling the Chassis Holder by force may damage the clip or
the connector. Pull the Chassis Holder just until the clip comes
off the hole.
Main Board
① Separate the Speakers, the Speaker Wire, the D-Coil Master
Wire, and the Remote Control Sensor Cable from the Front
Cabinet and the System Board.
② Separate the wire from the Wire pressing the at.
: Since there is a clip to connect the Connector Header in the
Wire Connector, pulling it by force may damage the clip or the
connector. Press the clip down completely and pull the
connector.
① Separate theAV and Main Board from the Front Cabinet and
AV Wire, GT-Pin Wire.
② To separate the Wire, Fixing clip and pressing the Wire.
① Separate the 7P, 8P Wire connecting the DY Wire and the
CRT PCB.
② To separate the Wire, Fixing clip and pressing the Wire.
Pull the chassis while raising the
clip fixing the Front Cabinet and
the Holder Chassis.
12-1-2 Disassembling the CRT and Chassis
