Disassembly & Reassembly
Samsung Electronics 12-3

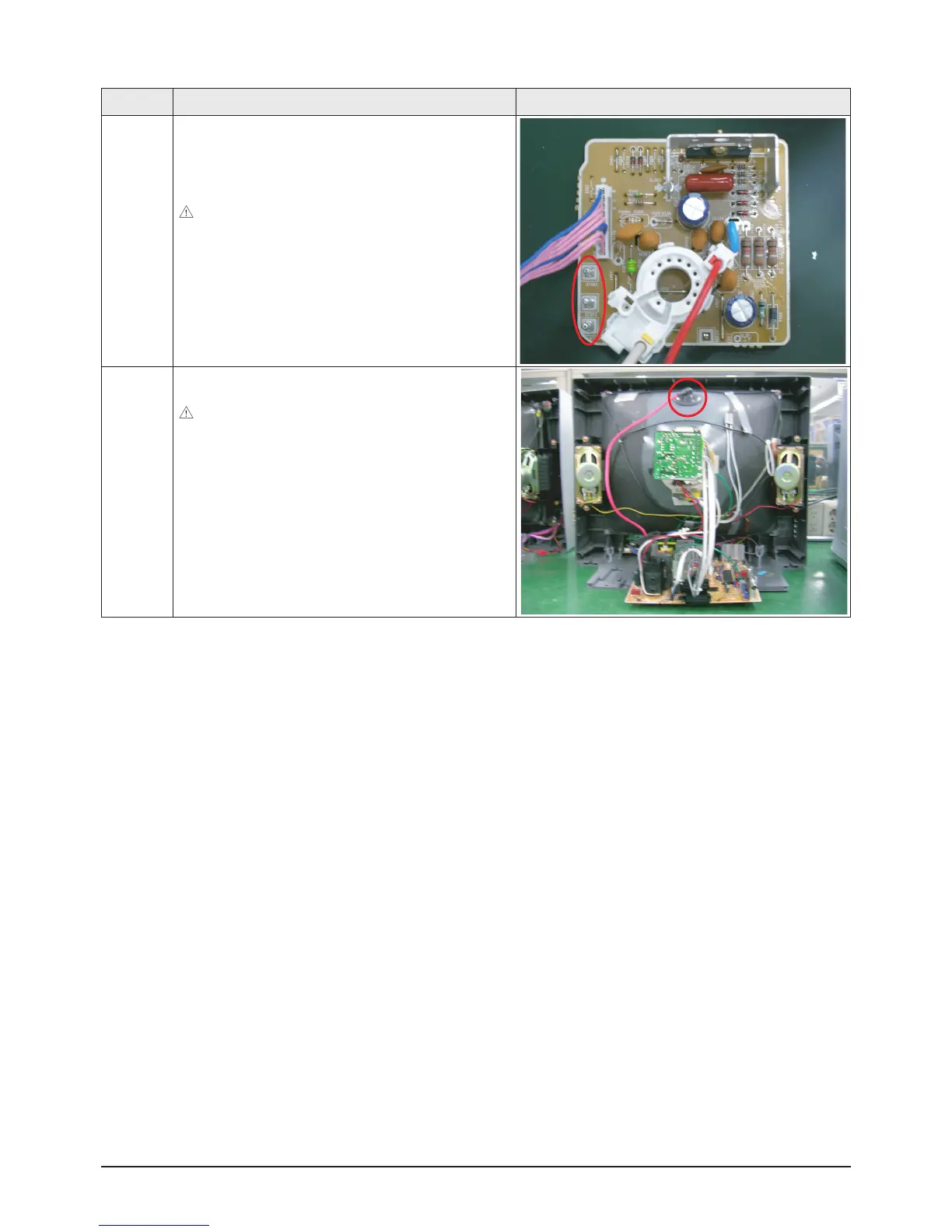

Part Name Description Description Photo
CRT Board
① Remove the CRT.
② Separate the TBC Wire,GND,VM cables from the CRT Ass'y.
(GND, VM, Tilt Model by option)
: When take off VM,Tilt cable from CRT PCB, don't
touch PIN in CRT electric gun.
FBT
① Separate the cables connecting the FBT and the CRT.
: Since there may be a remaining high-voltage current within
the CRT, take care not to touch the CRT hole with metal or a
part of yourself when separating the cables.
