20 _ Removal and Reassembly
Part Figure Description

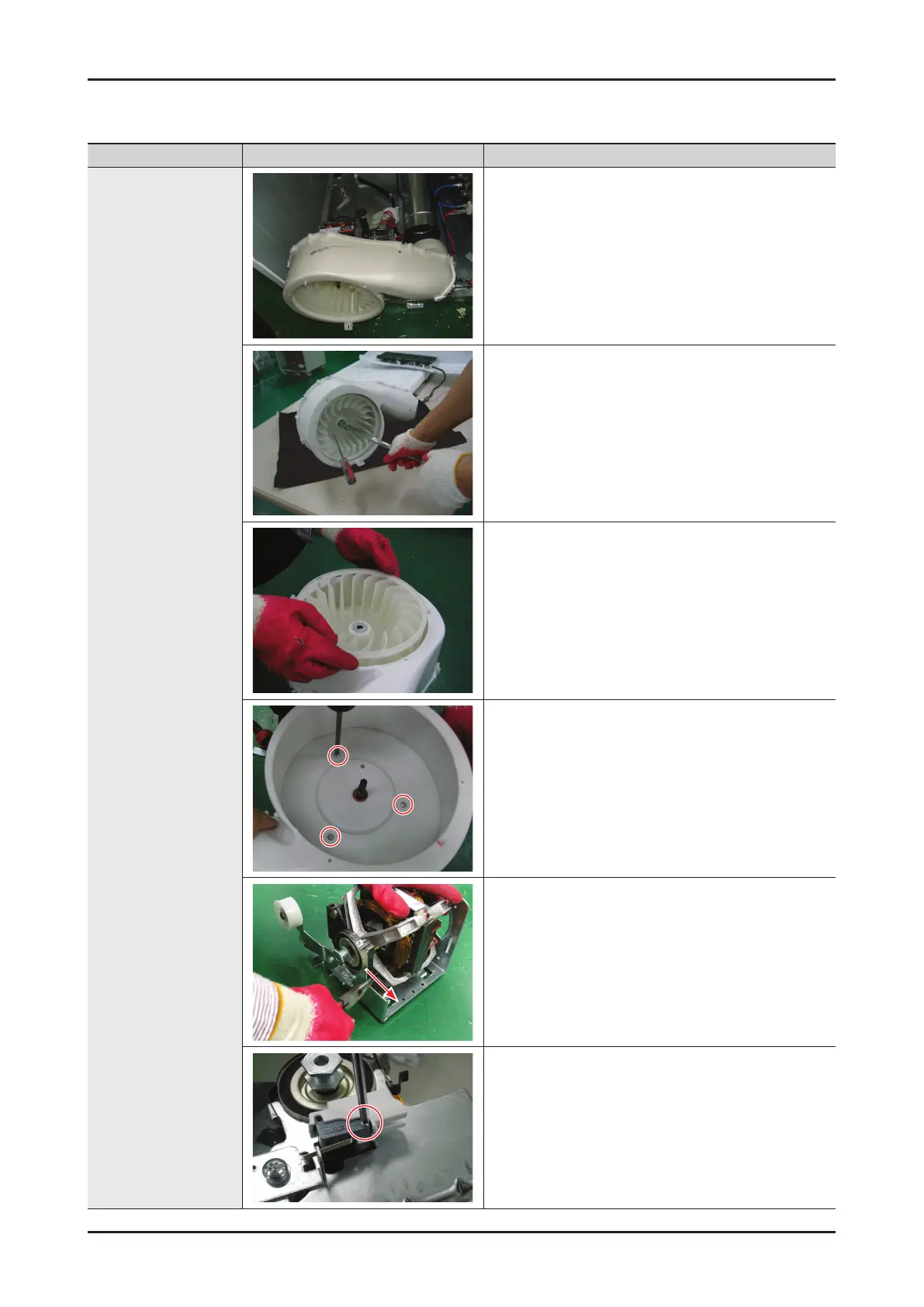

Assy Motor Removal
(Continued)
9. Separate the motor ASSY at the bottom Plate
10. Remove 1 Nut Fan
11. Remove the Fan
12. Remove 3 screws from the Cover-Duct fan
13. Remove the 2 Spring Plate
14. Remove the 1 screw Belt cut Off Switch
