Samsung DV409SEL - Sub PCB

PCB Diagram _ 57

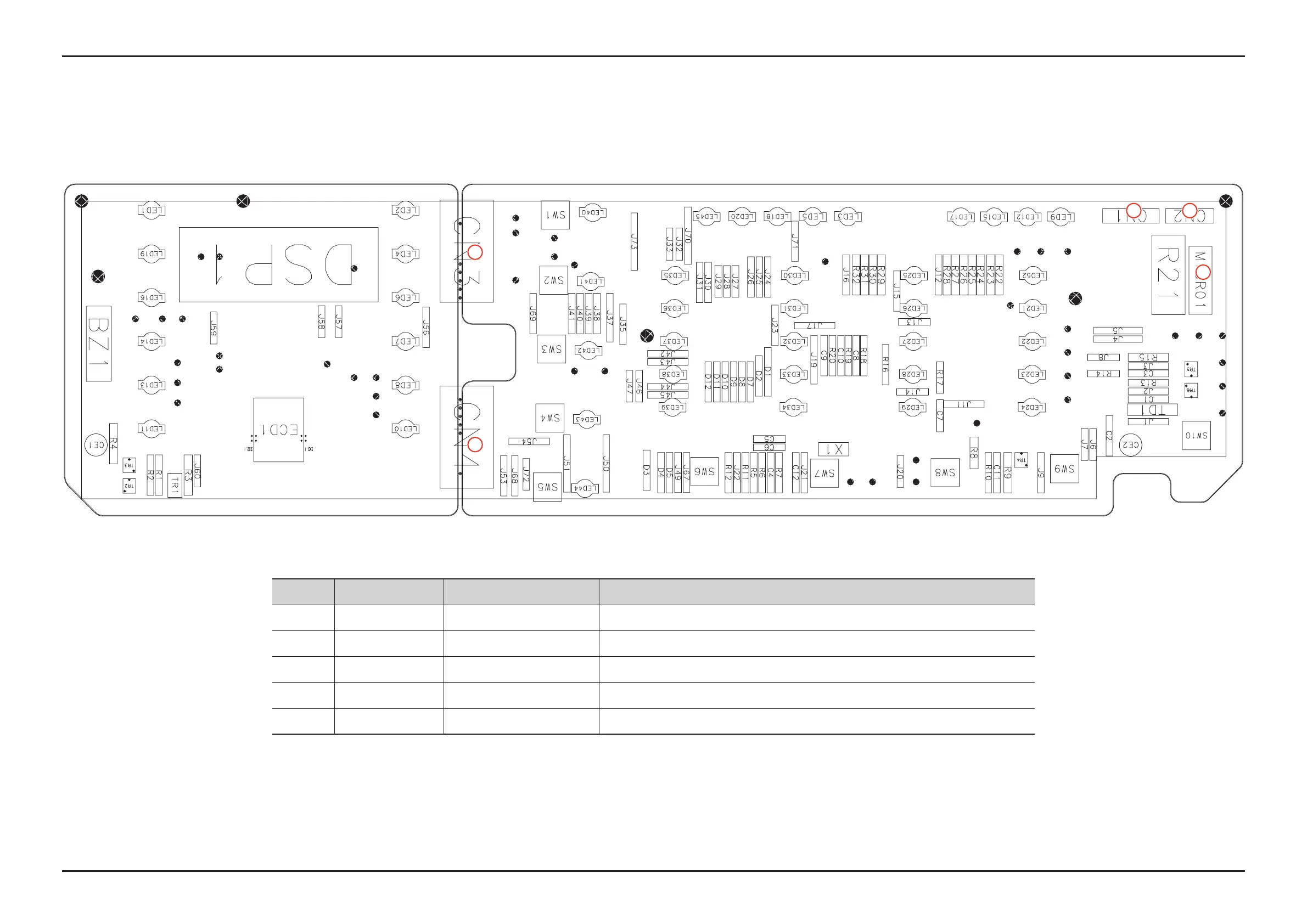

6-3. SUB PCB
Location Part No. Function Description
1 CN2 Power Connection Port Receives power from the Main PBA and provides a communications function.
2 CN1 Main PBA Connection Port Connects power.
3 CN4 PBA Connection Port Connects the LED board and the Encoder switch board
4 CN3 PBA Connection Port Connects the LED board and the Encoder switch board
5 MICRO1 Main S/W Main Relay On/Off
1
5
4
3
2
