Samsung DV409SEL - Small Parts

52 _ Exploded views and Parts list

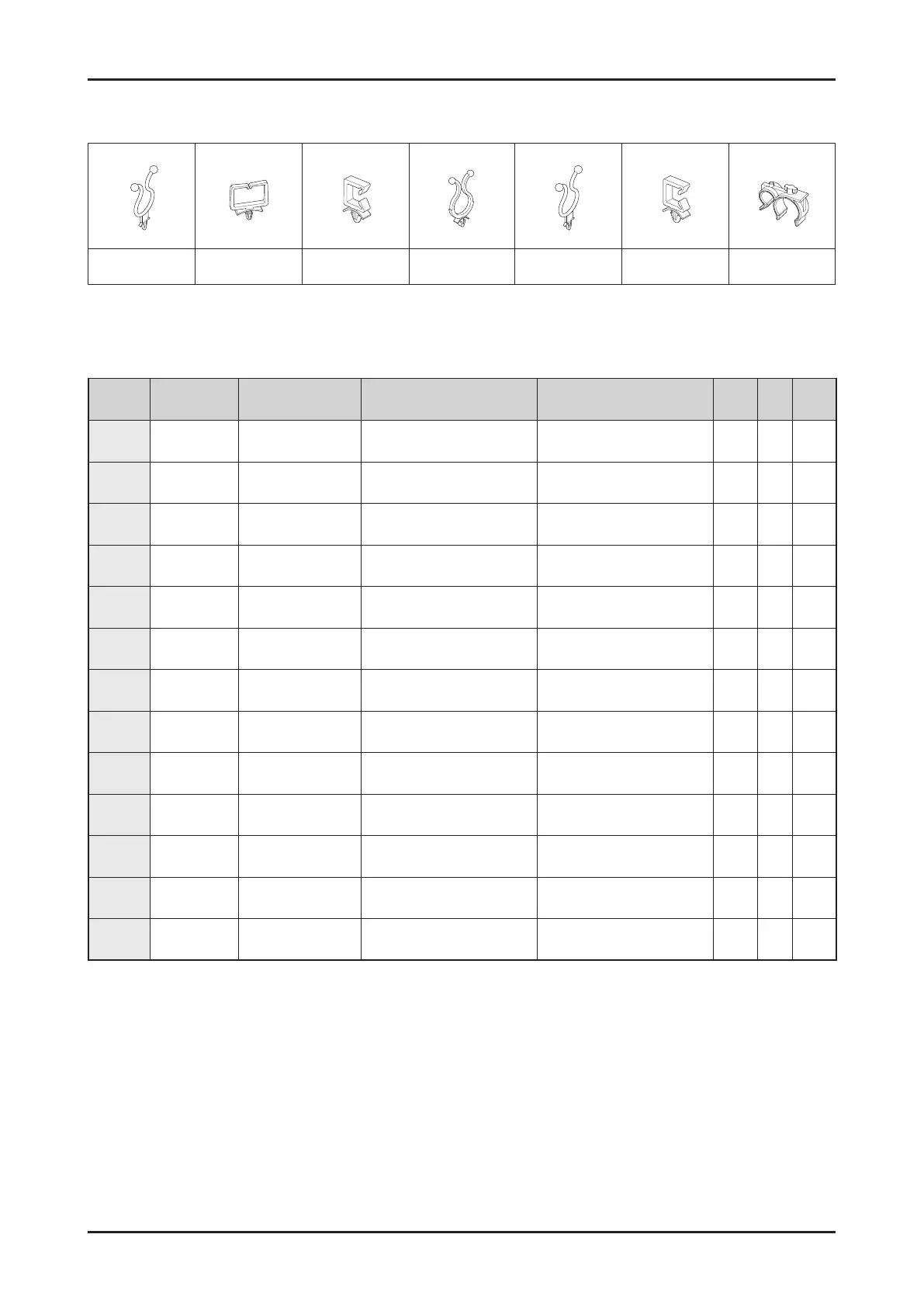

5-7. SMALL PARTS
MODEL CODE: DV409SEL/XAC
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Drawing
No.
Code No. Description Specification QTY Un
SA/
SNA
1 6046-000310 STAND OFF ID11.5,L2,NTR,NYLON66,DA
WH-3NA
FRAME-PLATE(U)_R
1 PC SNA
1 6046-000310 STAND OFF ID11.5,L2,NTR,NYLON66,DA
WH-3NA
DRUM-FRONT 3 PC SNA
1 6046-000310 STAND OFF ID11.5,L2,NTR,NYLON66,DA
WH-3NA
DRUM-BACK 1 PC SNA
2 DC61-60074A HOLDER-WIRE -,NYLON#66(DAWS-6NB),-
,-,-,N
HOLDER-PCB 1 PC SA
2 DC61-60074A HOLDER-WIRE -,NYLON#66(DAWS-6NB),-
,-,-,N
FRAME(REAR TOP)
1 PC SA
3 DC61-00553B HOLDER-WIRE
SADDLE
-,NYLON66,-,-,-,NTR,D GUIDE-LAMP 1 PC SA
4 DC61-40081A HOLDER-WIRE DAWH-2NC,NYLON66,-,-,-
,-,NTR
FRAME-PLATE(U)_L
1 PC SNA
4 DC61-40081A HOLDER-WIRE DAWH-2NC,NYLON66,-,-,-
,-,NTR
BOTTOM+FRAME
3 PC SNA
4 DC61-40081A HOLDER-WIRE DAWH-2NC,NYLON66,-,-,-
,-,NTR
PLATE-BOTTOM
5 PC SNA
5 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-
,NYLON66,NTR
HOLDER-PCB 1 PC SNA
5 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-
,NYLON66,NTR
DRUM-BACK 1 PC SNA
6 DC61-00553C HOLDER-WIRE
SADDLE
-,NYLON66,-,-,-,NTR,D F/FRONT 1 PC SA
7 DC61-00133A CLAMPER HOSE-
FIX
P1291,PP,ID24.5,OD29.5,
DRUM-BACK 1 PC SNA
1
3
4
5
6
2
7
(Option)
