Samsung DV409SEL - COMPONENT TESTING PROCEDURES

Troubleshooting _ 33

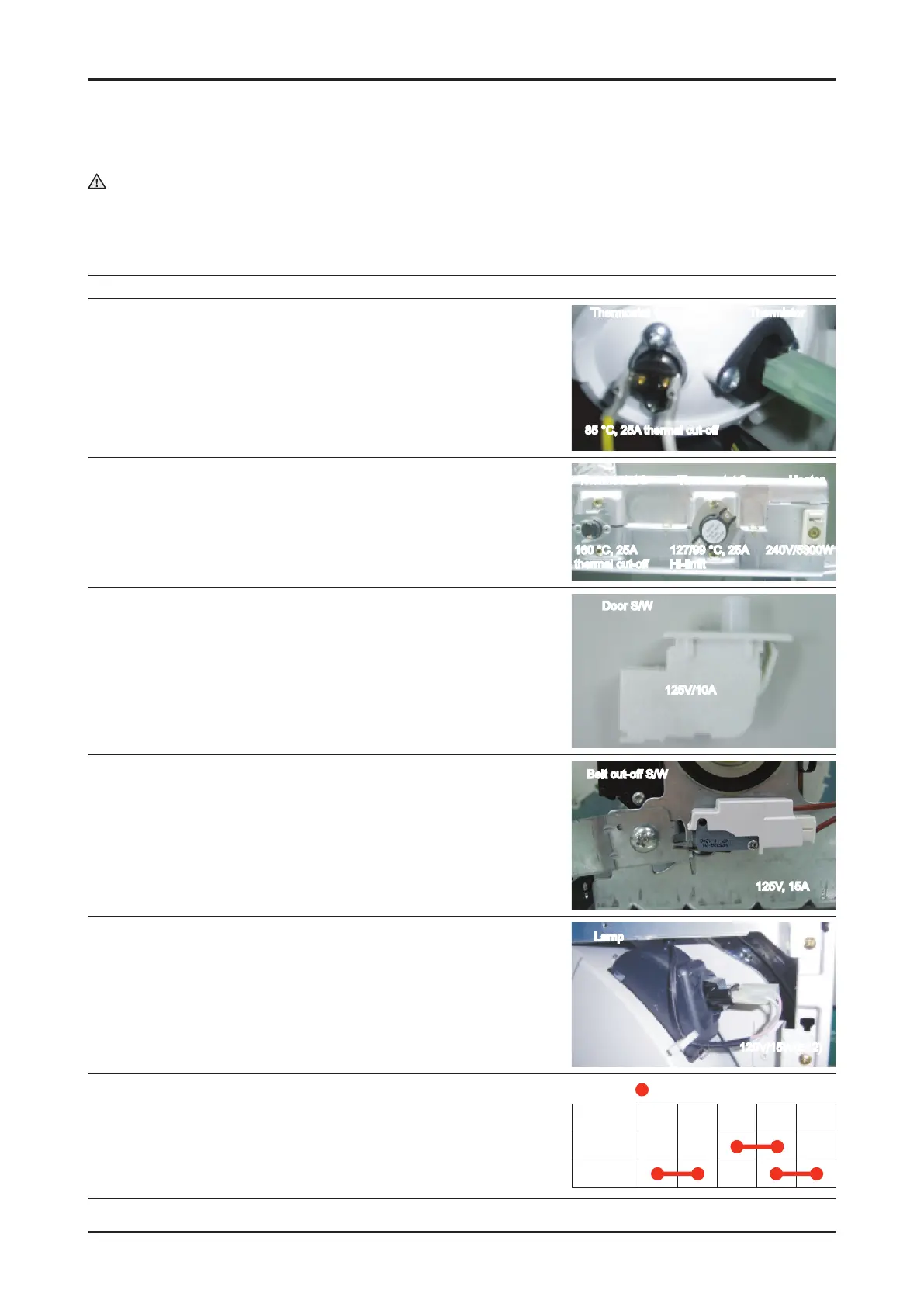

4-5. COMPONENT TESTING PROCEDURES
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before servicing, unless testing
requires power.
■ Component electrical testing (with ohmmeter)
• Thermistor resistance 10K Ω @ 25°C 77°F (2P-Blue & Red wire)
• Thermostat 1 resistance < 1Ω (White & Yellow wire)
Thermostat 1 Thermistor
85 °C, 25A thermal cut-off
• Thermostat 3 resistance < 1Ω (Red & Black wire)
- If resistance is infinity, replace thermostat 3.
• Thermostat 2 resistance < 1Ω (Blue & Black wire)
- If resistance is infinity, replace thermostat 2.
• Heater resistance 10 Ω (Blue & Blue wire)
- If resistance is infinity, replace Heater.
Thermostat 3
160 °C, 25A
thermal cut-off
Thermostat 2 Heater
127/99 °C, 25A
Hi-limit
240V/5300W
• Measure resistance of the following terminal
1. Door switch knob: open
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω
2. Door switch push: On
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω
Door S/W
125V/10A
• Belt Cut-off S/W
- Lever open: Resistance value < 1Ω
- Lever push: Resistance value ∞ Ω
Belt cut-off S/W
125V, 15A
• Lamp resistance 80~100 Ω (Violet & gray)
120V/15W(E12)
Lamp
• Motor (Electronic & GAS)
Contacts ( : Contact closed)
Function 1M 2M 3M 5M 6M
Start
Run
