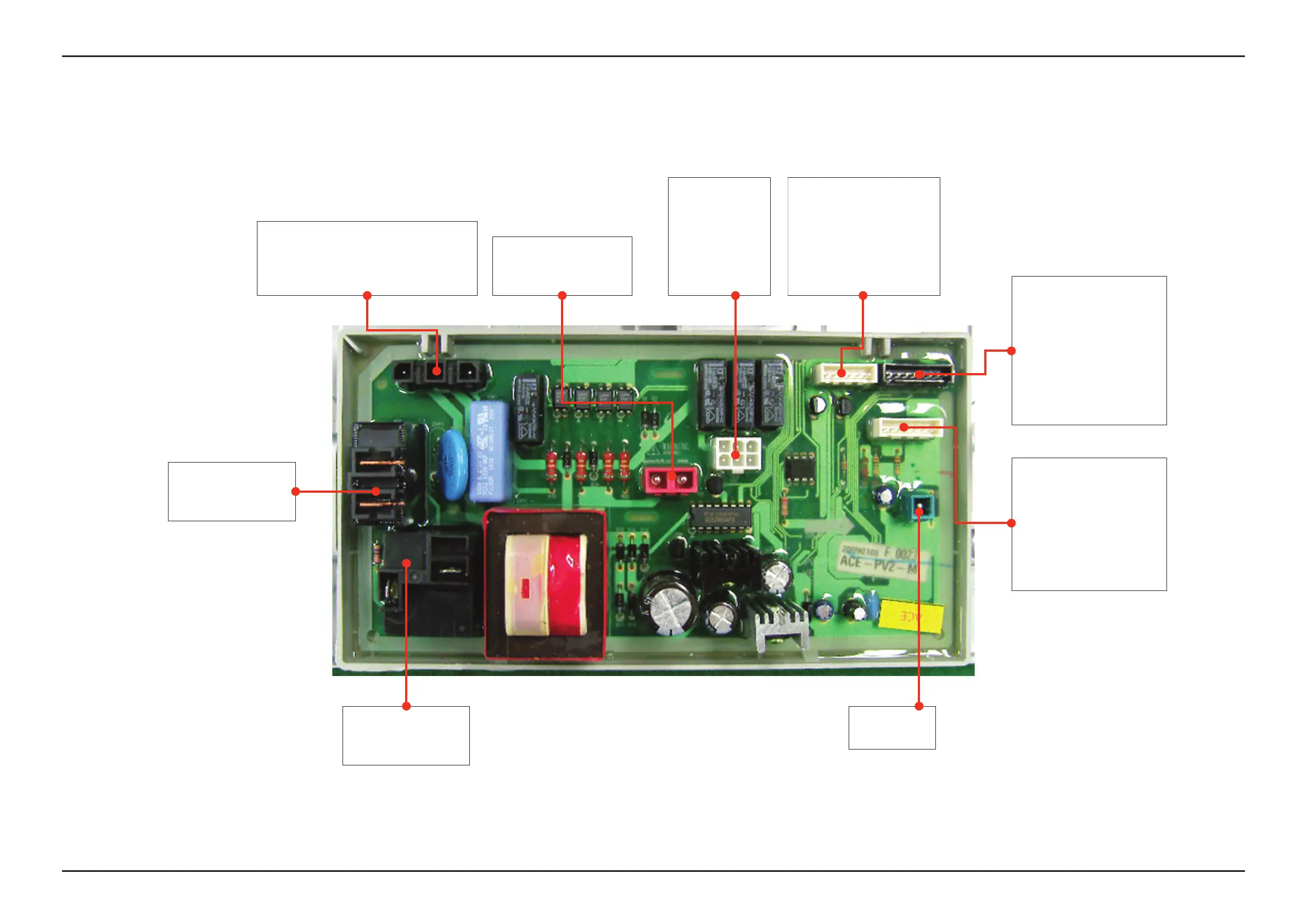

6-2. DETAILED DESCRIPTIONS OF CONTACT TERMINALS (MAIN PCB)
► CN1
1. AC Power Port
2. AC Power Off Detection Sensor
3. Door Detection Sensor (LOCK, UNLOCK)
► CN7
1. Reactor Connection Port
2. Reactor Connection Port
► CN5
1. Steam Valve 1
2. Empty Pin
3. LAMP
4. Empty Pin
5. Steam Valve 2
6. Empty Pin
► CN2
1. Communications Port (Tx)
2. Communications Port (Rx)
3. Sub Reset
4. DGND
5. 5V
6. 15V
► CN3
1. 5V
2. SO
3. SI
4. RESET
5. CLOCK
6. FLMDO
7. DGND
8. Empty Pin
► CN4
1. DGND
2. Empty Pin
3. Temperature Sensor
4. Fabric Detection Sensor
5. Fabric Detection Sensor
6. 5V
7. 5V
► CN6
1. SET GND
► RY6
1. Heater Relay Switch
2. Heater Relay Switch
► RY5
1. Motor Relay Switch
2. Motor Relay Switch
