58 _ PCB Diagram

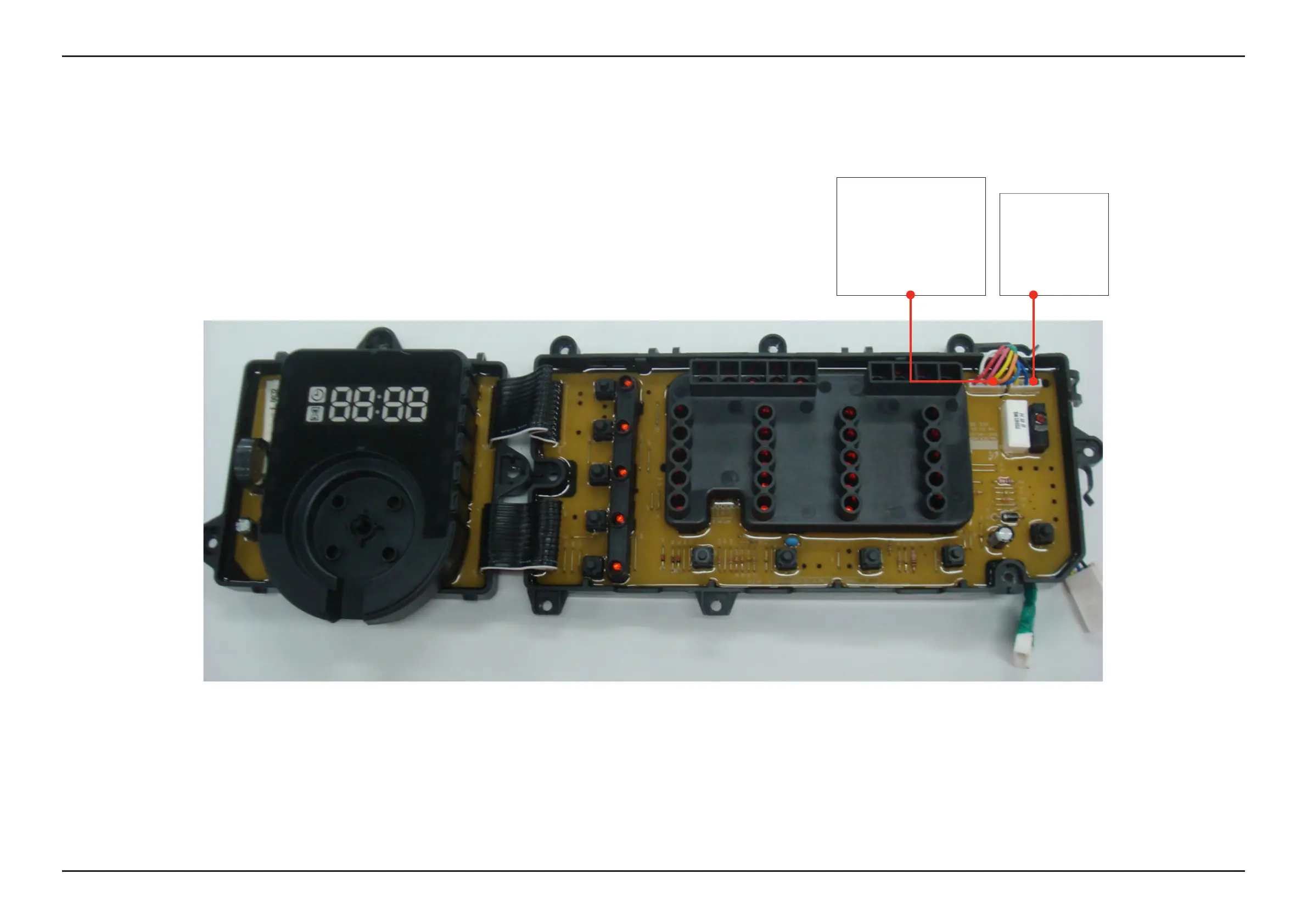

6-4. DETAILED DESCRIPTIONS OF CONTACT TERMINALS (SUB PCB)
► CN2
1. CO
2. Empty Pin
3. NO
4. Enpty Pin
5. NC
► CN1
1. Communication Port (Tx)
2. Communication Port (Rx)
3. Outputs the Reset Signal
4. Ground
5. 5V
6. 15V
